FTTx & PON Access
Coordinate feeder and drop cable, splitters, closures, distribution boxes, adapters and subscriber termination around the optical budget.
From access route to equipment room
Match the Fiber Build to Its Operating Environment
Cable construction, distribution hardware and termination choices change with topology, pathway, exposure, density and the way technicians will reach the link.
Six network environments
Start with the Route, Then Build the Fiber Schedule
These views connect cable, distribution, connectivity and protection without assuming that one configuration fits every network.
Data Center & Edge Rooms
Plan rack units, patch-panel density, fiber raceways, cable trays, power distribution, airflow and front/rear service clearance.
Macro & Micro Telecom Sites
Bring outdoor enclosures, fiber entry, active equipment, rectifier capacity, DC distribution, grounding and cooling into one site layout.
Transport & Roadside Networks
Prioritize weather protection, compact equipment integration, vibration, cable sealing, remote monitoring and safe field access.
Industrial & Utility Networks
Check temperature, dust, electromagnetic conditions, cable construction, enclosure materials and redundancy requirements.
Remote & Emergency Communications
Define transportability, installation speed, environmental control, power interface, equipment access and recovery procedures.

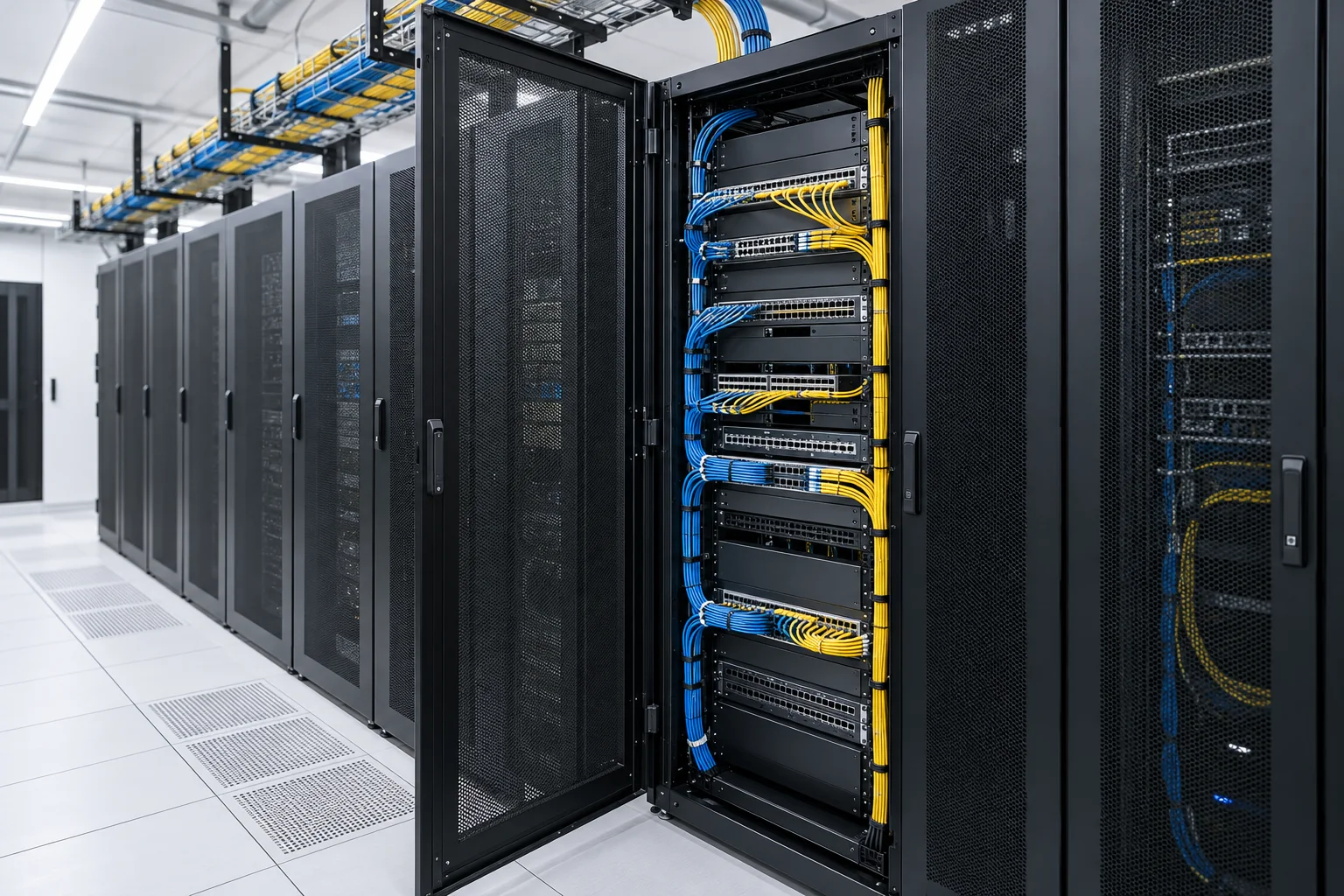

Indoor infrastructure
Data Center and Edge Rooms Need More Than an Empty Rack
Rack width and height are only the beginning. Equipment depth, door clearance, airflow, patching, overhead or underfloor routes and branch power distribution all influence the final cabinet layout.
- Map equipment by rack unit, depth and service side.
- Separate fiber pathways from power while preserving access.
- Reserve bend-radius control and slack storage near patching.
- Check PDU location, circuit count and maintenance isolation.

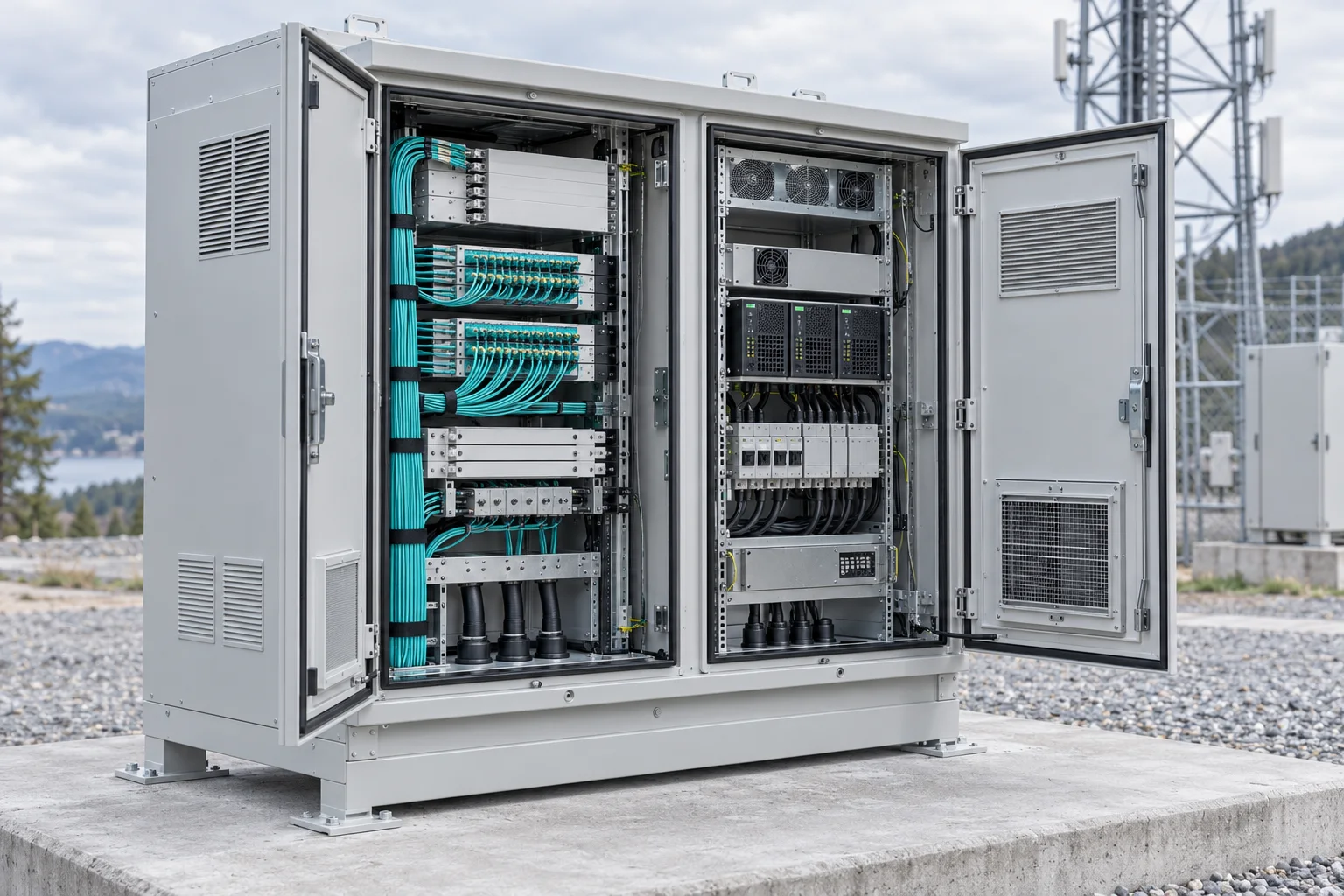

Outdoor infrastructure
Outdoor Sites Add Environmental and Service Constraints
A cabinet or shelter must protect equipment without making routine maintenance difficult. Cable glands, grounding, thermal management, door swing, lifting and future expansion should be settled before the internal layout is frozen.
- Match ingress and corrosion protection to the real location.
- Calculate thermal load from the installed equipment list.
- Keep fiber, signal and power entry organized and serviceable.
- Allow safe access to protection, rectifiers and distribution.
Solution input checklist
Six Inputs Make an Application Discussion More Specific
Use the same information across product categories so interfaces do not disappear between separate quotations.
Network role
Access, aggregation, edge, backhaul, monitoring or emergency service.
Site conditions
Indoor, outdoor, climate, dust, water, corrosion and physical access.
Optical path
Fiber type, count, wavelength, connectors, split and test requirements.
Equipment load
Rack units, dimensions, heat load, service clearance and growth allowance.
Power path
AC source, DC voltage, load current, protection, redundancy and monitoring.
Documentation
Drawings, schedules, ratings, test reports and acceptance records.
Describe the deployment
Prepare a Solution BriefConnect the Site Conditions to the Product Requirements
Share the network role, equipment list, optical interfaces, power input and outdoor exposure.
