01 · Trace
Mark distance, pathway, buildings, outdoor exposure and every planned connection point.
Four steps from route to handover
Define the Optical Link Before Selecting Components
A compact project workflow keeps route, interface, protection and testing requirements visible without adding software or server-side work.
System boundary
Begin with What Enters, What Leaves and What Must Fit
Every product has external interfaces. A fiber panel needs the correct cable and connectors. A rack needs the equipment depth and cable route. A power system needs a load schedule and protection concept. An outdoor cabinet needs all of these plus environmental control.
- Record the upstream and downstream equipment.
- List optical, electrical, mechanical and data interfaces.
- Separate required capacity from future allowance.
- Identify the evidence needed for technical review.
Four-stage method
Build a Fiber Brief That Can Be Checked
The sequence is deliberately simple enough for one patch link, an FTTx route or a protected industrial backbone.
02 · Quantify
Count fibers, ports, splices, splitters, patching positions and realistic growth allowance.
03 · Coordinate
Check cable construction, connector polish, bend radius, enclosure entry and service access.
04 · Verify
Define labeling, continuity, polarity, insertion loss, OTDR and handover records where required.
Interface register
Different Product Systems Need Different Questions
Use the register as an inquiry checklist, not as a substitute for the applicable standards or project specification.
Fiber Distribution
Fiber count, connector, polish, splice method, splitter format, cable diameter, bend control and labeling.
Network Racks
Rack units, width, depth, equipment load, door clearance, airflow, cable pathways and PDU location.

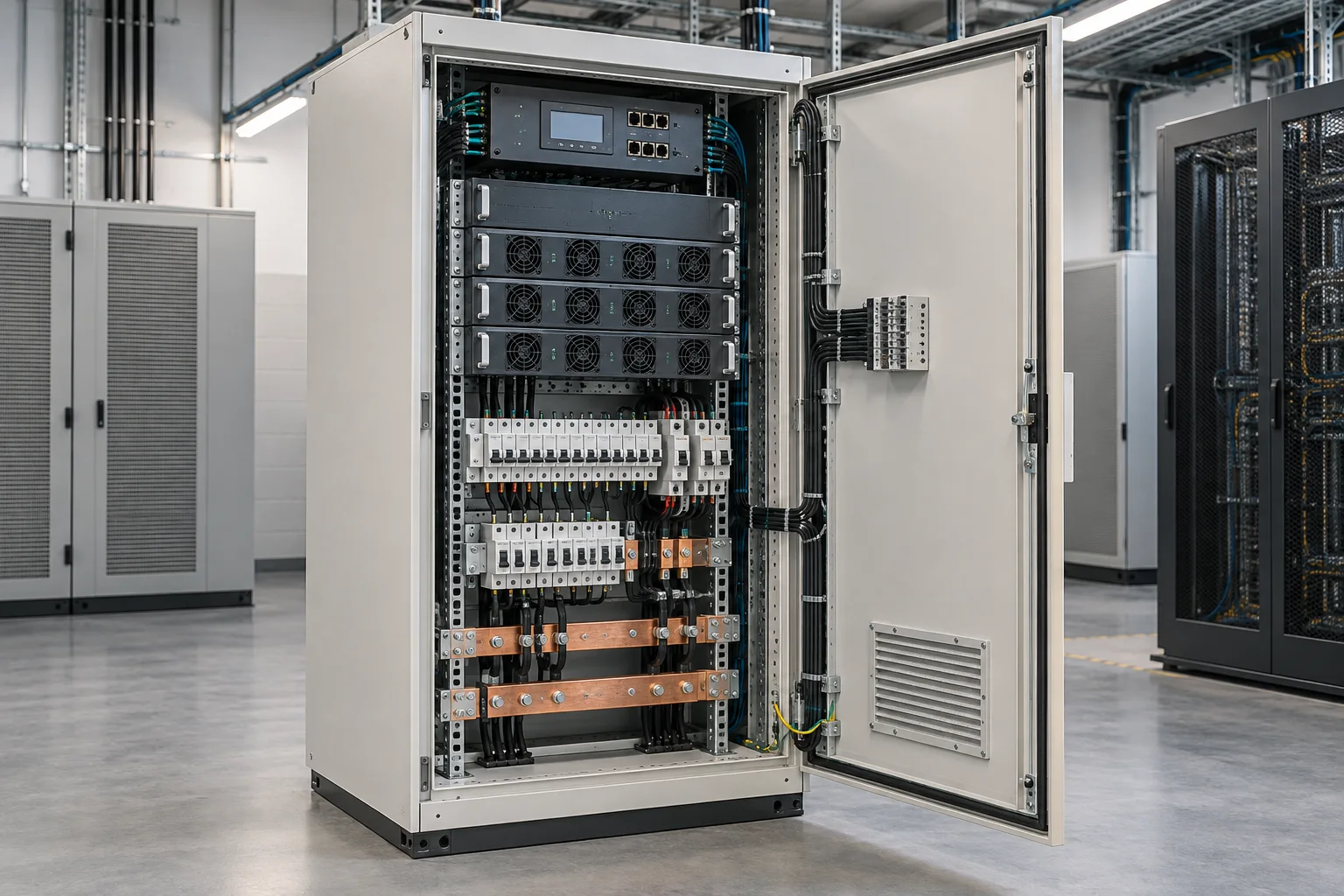

Telecom Power
Input supply, DC voltage, load current, redundancy, protection, distribution, monitoring and grounding.
Outdoor Enclosures
Protection rating, material, temperature, solar exposure, cooling, cable entry, mounting and access.
Verification records
Keep Enough Evidence to Support Installation and Maintenance
A useful technical package may include dimensions, internal layout, circuit schedules, fiber port schedules, declared enclosure ratings and relevant test information. The exact package depends on the product and project.

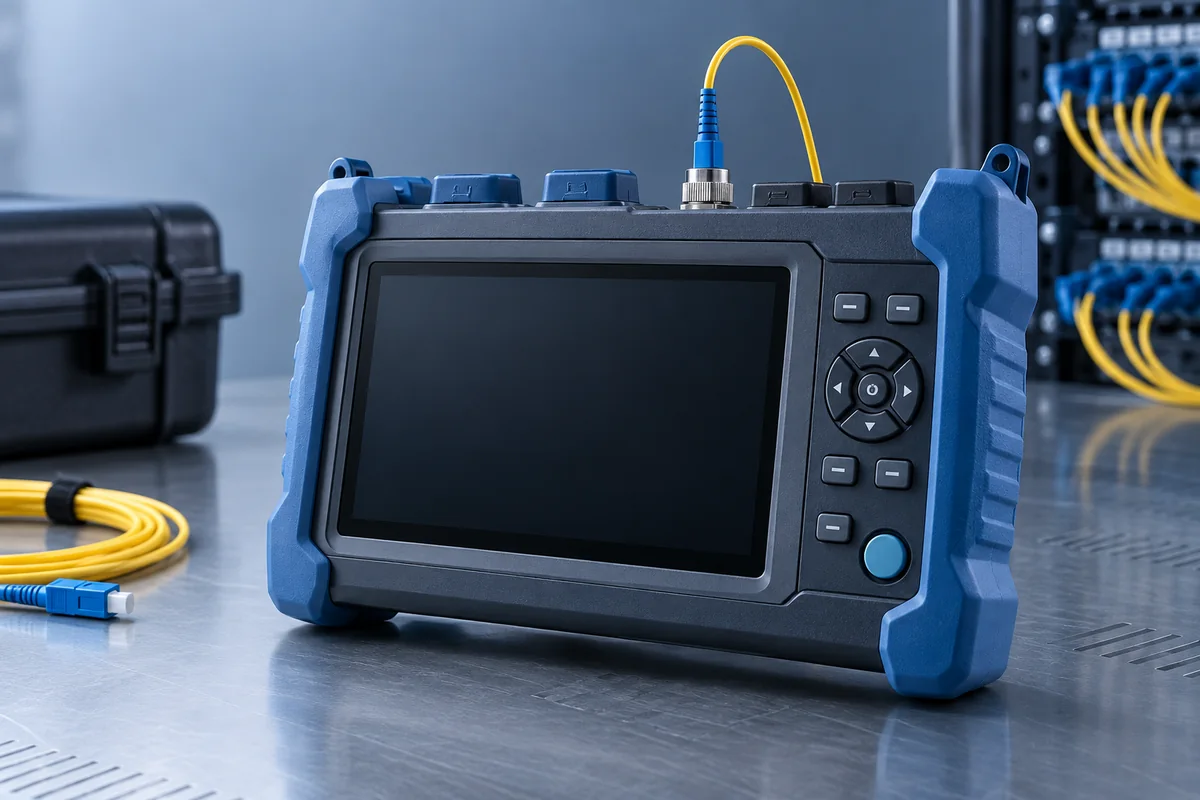

- Optical: continuity, polarity, insertion loss and OTDR where required.
- Electrical: circuit identification, protection settings and grounding checks.
- Mechanical: dimensions, loading, mounting and cable-entry arrangement.
- Environmental: declared protection and thermal-management conditions.
Engineering inquiry
Use the Inquiry ChecklistSend the Interface List Before the Product List Is Frozen
Early coordination is easier than changing cable entry, rack depth or power distribution after delivery.
