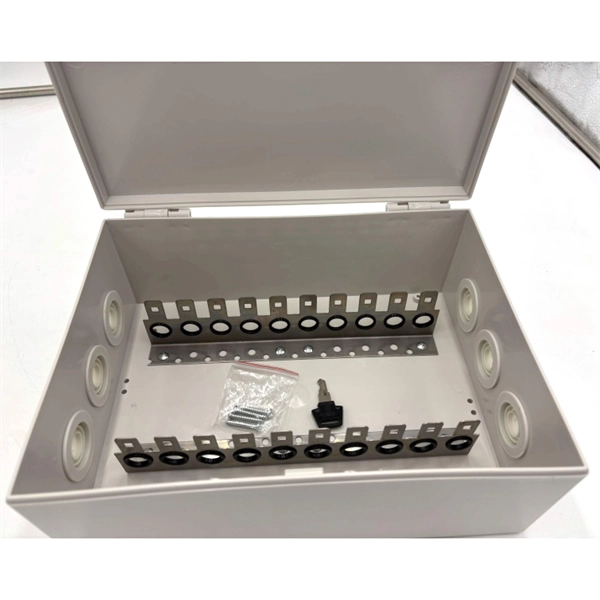

Pole-mounted installation scheme for distribution boxes

Pole-mounted distribution boxes must be securely mounted, weatherproofed, properly grounded, and installed at regulated heights to ensure safety, accessibility, and reliable operation.

Site Preparation and Planning

Before installation, evaluate the site conditions including wind, ice, UV exposure, and potential flooding. Select a pole that can support the weight of the distribution box and associated equipment, considering a safety factor for dynamic loads such as wind or vibration. Confirm local utility requirements, National Electrical Code (NEC) guidelines, and any applicable NEMA or IP ratings for outdoor enclosures to ensure compliance and durability.

Mounting and Structural Considerations

Pole Selection: Use treated wood or steel poles rated for the load and environmental conditions. Ensure the pole is plumb and stable. Mounting Hardware: Employ brackets, straps, or cross-arm mounts designed for the enclosure type.

Chemical anchors or through-bolts may be used for concrete poles, while heavy-duty straps or brackets secure boxes to wooden poles. Height and Clearance: For overhead service, the centerline of the box is typically 4–6 feet above finished grade; for underground service, 3–6 feet is common. Maintain sufficient clearance for safe operation, maintenance, and utility access.

Vibration and Stability: In areas with vibration, install isolation pads or dampers to protect internal wiring and terminal connections.

Electrical and Safety Considerations

Grounding: Connect the distribution box to a grounding electrode to meet safety standards and prevent electrical hazards. Surge Protection and Thermal Management: Include surge arresters and ensure adequate ventilation or heat dissipation to maintain reliability. Cable Entry and Strain Relief: Pre-plan cable entry points, use correctly sized cable glands, and provide mechanical strain relief to prevent conductor stress.

Internal Layout: Mount heavier components lower to improve the center of gravity, arrange devices for short wiring runs, and label all circuits for easy maintenance.

Enclosure and Environmental Protection

Weatherproofing: Use enclosures rated for outdoor use (NEMA 3R or higher, or IP65+) to protect against rain, dust, and UV exposure. Material Selection: Polypropylene or UV-resistant plastics are suitable for lightweight enclosures; metal enclosures may be used for heavier switchgear. Accessibility: Ensure the box is reachable for maintenance and meter reading, and consider features like external switching slides for safe operation from the ground.

Commissioning and Maintenance

Testing: Verify all connections, torque fasteners to manufacturer specifications, and perform insulation and continuity tests before energizing. Maintenance: Schedule periodic inspections to check for corrosion, loose connections, and ingress protection integrity. Replace damaged gaskets or cable glands as needed.

ApplicationsPole-mounted distribution boxes are ideal for rural properties, remote buildings, temporary construction sites, farm services, and detached outbuildings, where underground wiring is impractical or elevated positioning reduces flood risk. By following these guidelines, pole-mounted distribution boxes can be installed safely, reliably, and in compliance with electrical codes, ensuring long-term operational efficiency and protection against environmental hazards.
