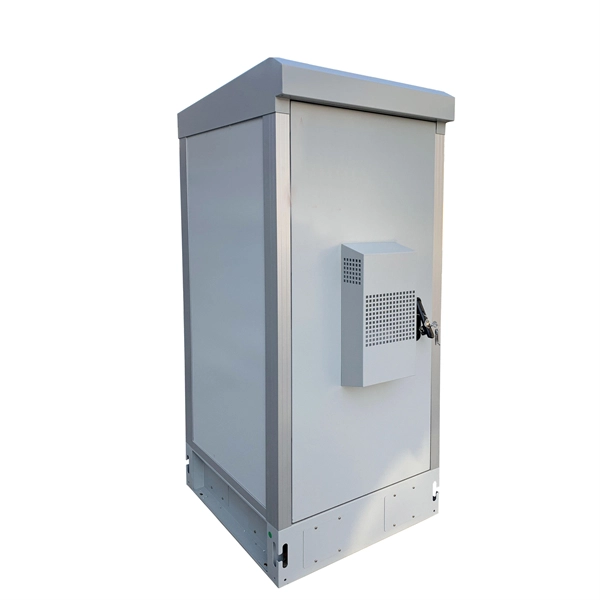

Tens of tons of electrical distribution box

Industrial electrical distribution boxes can be designed to handle extremely high power loads, with robust enclosures, multiple circuits, and advanced safety features suitable for heavy-duty applications.

Overview

Electrical distribution boxes, also known as DB boxes or power distribution boxes, are central hubs that safely distribute electrical power from a main supply to multiple circuits in residential, commercial, and industrial systems. For industrial or utility-scale applications, these boxes can be extremely large, sometimes weighing several tons due to the heavy-duty materials, multiple bus bars, circuit breakers, and protective devices they house. Components and MaterialsLarge-scale distribution boxes typically include: Circuit Breakers and Fuses: Protect circuits from overloads and short circuits.

Residual Current Devices (RCCBs): Detect imbalances and prevent electrical hazards. Bus Bars: Heavy-duty metal strips (copper or aluminum) that conduct electricity within the box. Isolators and Terminal Blocks: Allow safe maintenance and connection of multiple circuits.

Enclosures: Made from metal (steel or aluminum) or high-strength plastics (SMC, polycarbonate) to withstand mechanical stress, environmental exposure, and high temperatures. Surge Protection Devices: Protect against voltage spikes and lightning strikes. For extremely large boxes, the enclosure may include ventilation systems to dissipate heat generated by high-power components.

Types and Applications

Industrial distribution boxes can be classified by installation and function: Surface-Mounted or Floor-Mounted: For factories, power plants, or large industrial facilities.

Pole-

Mounted or Outdoor Enclosures: For utility distribution, street lighting, or renewable energy systems.

Single-

Phase or Three-Phase: Three-phase boxes are common in industrial settings due to higher power capacity. Control and Power Distribution Boxes: Integrate relays, contactors, and timers for automation and heavy machinery control. These boxes are used in industrial plants, data centers, infrastructure projects, and large commercial buildings, where power demands are high and safety is critical.

Considerations for Extremely Heavy Distribution Boxes

Weight and Transport: Boxes weighing tens of tons require specialized lifting equipment and reinforced foundations. Safety Compliance: Must meet international standards such as IEC 61439 for low-voltage switchgear and controlgear assemblies. Modular Design: Large systems often use modular or decentralized distribution to simplify installation, maintenance, and scalability.

Environmental Protection: High IP ratings (IP65–IP66) ensure protection against dust, moisture, and harsh outdoor conditions. ConclusionTens-of-tons electrical distribution boxes are essentially industrial-scale, high-capacity DB boxes designed for heavy-duty applications. They combine robust materials, advanced safety components, and modular designs to manage large electrical loads safely and efficiently in industrial, utility, and infrastructure projects.

Proper planning, installation, and compliance with safety standards are critical for their operation.
