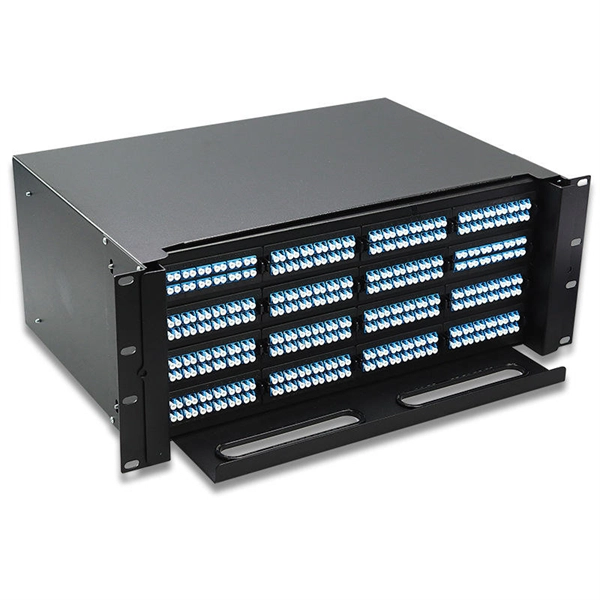

Installing the mobile fiber distribution box

A mobile fiber distribution box should be installed in an accessible, secure location, with proper mounting, cable management, splicing, and testing to ensure reliable network connectivity. Step 1: Choose the Right LocationSelect a location that is easily accessible for maintenance, secure, and protected from environmental hazards. Consider whether the installation is indoor (wall or rack-mounted) or outdoor (pole or ground-mounted).

Ensure there is sufficient working space—typically at least 1. 5 meters in front of the box for safe operation and maintenance. For outdoor installations, choose a site that is sheltered from direct sunlight, rain, and potential physical damage.

Step 2: Gather Tools and EquipmentEssential tools include: Drills and screwdriversCable strippers and fiber cleaversSplice trays and protective sleevesCable management rings or guidesPersonal protective equipment (gloves, safety glasses)Mounting hardware (wall plugs, screws, or pole clamps) depending on the installation type Step 3: Inspect the BoxBefore installation, check the fiber distribution box for any damage and confirm that all components are included, such as splice trays, cable management rings, and mounting brackets. Step 4: Mount the BoxWall Mounting: Mark drill points, insert wall plugs, and secure the box with screws.

Ensure it is level and stable. Pole Mounting: Use the provided pole mounting kit or metal clamps to secure the box at a manageable height. Rack Mounting: Slide the box into a standard 19-inch rack and secure it with screws, following manufacturer instructions.

Step 5: Prepare and Route CablesMake entry points for incoming and outgoing cables using pre-cut holes or knockouts. Use cable glands or rubber grommets to protect fibers from sharp edges and maintain waterproof or dustproof integrity. Route the fiber optic cables into the box carefully, avoiding sharp bends or tension.

Step 6: Splicing and TerminationStrip the cable jackets and clean fiber ends with lint-free wipes and alcohol. Terminate fibers using appropriate connectors or splice them to pigtails. Organize fibers in splice trays or patch panels to prevent damage and ensure easy identification.

Step 7: TestingUse a fiber optic testing tool, such as an OTDR (Optical Time-Domain Reflectometer), to verify signal quality and detect any faults. Perform comprehensive testing to ensure all connections are functional and meet network standards.

Best Practices

Maintain proper bend radius for all fibers to prevent signal loss. Label all fibers and connections clearly for future maintenance. Ensure compliance with local safety and telecommunications regulations.

For mobile or temporary deployments, consider weatherproof and robust enclosures to protect fibers during transport and operation. By following these steps, a mobile fiber distribution box can be installed efficiently, providing a centralized, organized, and reliable point for fiber optic cable management.
