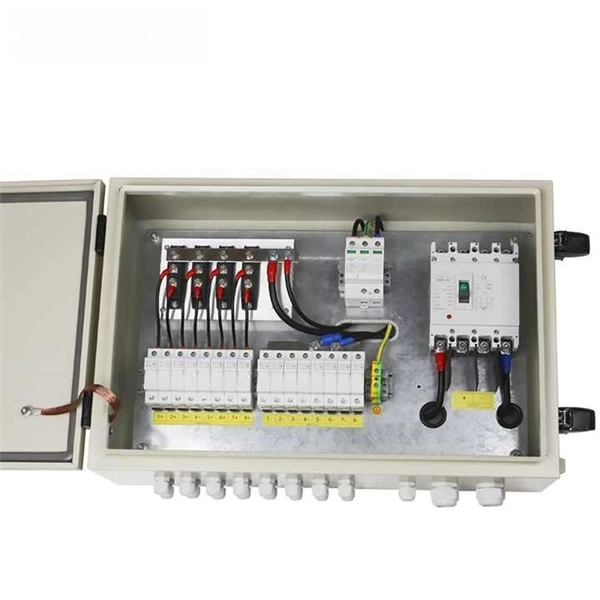

Standard Home Electrical Distribution Box Allocation

A home distribution box should allocate circuits by function—lighting, sockets, and high-power appliances—using appropriate protective devices for safety and future expansion.

Circuit Allocation Principles

Main Switch: Controls the entire electrical system and allows complete isolation for maintenance or emergencies. Room Socket Circuits: Each room should have its own circuit to prevent overloads and isolate faults. Standard sockets typically use MCBs rated for 16–20A depending on load.

Lighting Circuits: Separate circuits for lighting ensure that lights remain operational even if other circuits trip. These usually use 6–10A MCBs.

High-

Power Appliance Circuits: Appliances like air conditioners, water heaters, ovens, and electric stoves require dedicated circuits with higher-rated MCBs or RCBOs to prevent overloading. Spare Ways: Include extra slots in the distribution box for future expansion, avoiding the need for a complete panel replacement. Protective DevicesMCB (Miniature Circuit Breaker): Protects individual circuits from overload and short circuits.

RCCB/RCD (Residual Current Device): Protects against earth leakage and electric shock.

RCB

O: Combines MCB and RCD functions for individual circuit protection. Surge Protection Devices (SPD): Protect sensitive electronics from voltage spikes.

Internal Layout and Wiring

Busbars: Copper bars distribute power to all circuits; ensure proper spacing and secure connections. Neutral and Earth Bars: Keep neutral and earth wires organized and properly grounded.

DI

N Rail Space: Allocate sufficient space for breakers, RCDs, and future additions. Cable Management: Maintain neat wiring, correct wire gauge, and proper insulation to prevent overheating and facilitate maintenance.

Installation Considerations

Location: Install in a dry, accessible area such as a utility room, garage, or basement, typically around 1. 5 meters from the floor. Avoid areas near water or heat sources.

Ventilation: Ensure adequate airflow to prevent overheating. Compliance: Follow local electrical codes (NEC, IEC, or regional standards) and use certified components. Labeling: Clearly label each circuit for easy identification during maintenance or emergencies.

Summary

Proper allocation in a home distribution box ensures safety, efficiency, and flexibility. Each room, lighting, and high-power appliance should have dedicated circuits with appropriate protective devices. Include spare ways for future expansion, maintain organized wiring, and comply with local standards to prevent hazards and simplify maintenance.
