How to connect a router to a fiber optic module

To connect a router to a fiber optic module, you typically use an Optical Network Terminal (ONT) or a fiber optic transceiver to convert the optical signal into an Ethernet signal that your router can use. Step 1: Gather Necessary EquipmentOptical Network Terminal (ONT): Provided by your ISP, it converts the incoming fiber optic signal into an electrical signal compatible with your router. Fiber-ready router: Ensure your router supports WAN or SFP ports for fiber connections.

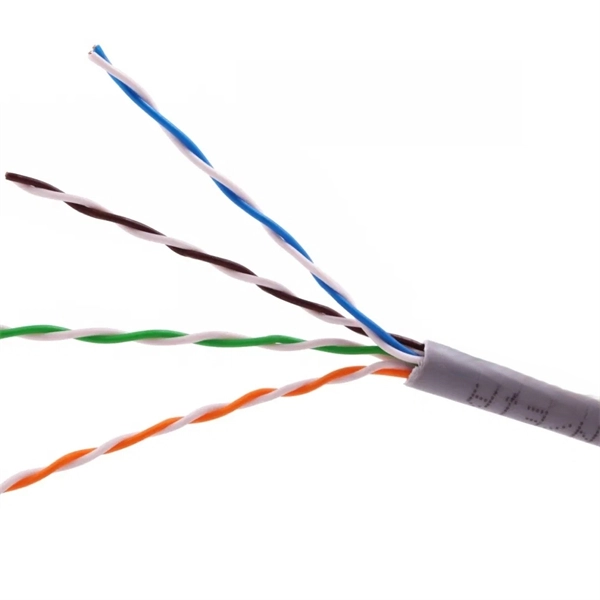

Fiber optic cable: Usually single-mode with SC/APC or SC/UPC connectors. Ethernet cable: Cat6a or higher is recommended to maintain high-speed performance. Optional fiber optic transceiver: If your router has an SFP port, a transceiver may be required to interface with the fiber cable.

Step 2: Connect the Fiber Optic CableLocate the fiber optic wall outlet where your ISP's fiber line enters your home. Remove protective caps from both the fiber cable and the ONT or transceiver port. Carefully insert the fiber optic cable into the ONT's optical input port or the transceiver, ensuring a secure click without forcing it.

Power on the ONT or transceiver and wait for the status lights to stabilize (usually 2–5 minutes),. Step 3: Link the ONT or Transceiver to Your RouterUse an Ethernet cable to connect the ONT's LAN/Ethernet port to the router's WAN port. If using a fiber optic transceiver, connect an Ethernet cable from the transceiver to the router's Ethernet port.

Power on the router and wait for the indicator lights to confirm a successful connection. Step 4: Configure the RouterAccess the router's configuration interface via a web browser (commonly 192. 168.

0. 1 or 192. 168.

1. 1),. Ensure the router recognizes the WAN connection and configure any necessary settings such as PPPoE credentials, VLAN tagging, or Quality of Service (QoS) for optimal performance.

Step 5: Verify the ConnectionCheck the ONT or transceiver lights for a solid green power and link indicator. Test internet connectivity on a connected device to confirm proper setup. If issues arise, ensure all connectors are clean, cables are properly seated, and router settings match ISP requirements.

By following these steps, your router will be successfully connected to the fiber optic module, allowing you to leverage high-speed fiber internet with minimal latency and maximum reliability.
