Outdoor cable tray heat dissipation methods

Effective heat dissipation in outdoor cable trays relies on open or perforated designs, high-conductivity materials, and proper ventilation to prevent cable overheating and extend service life. Key Factors Affecting Heat Dissipation1. Tray Design and Ventilation Open or ventilated cable trays allow air to circulate freely around cables, which is critical for cooling.

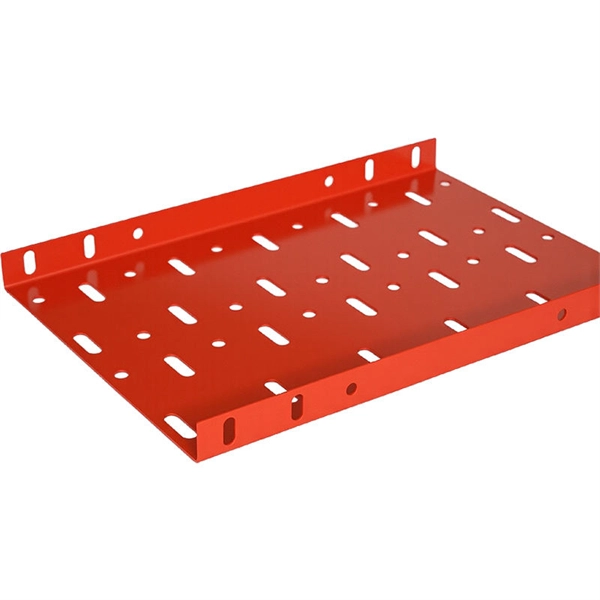

Ladder trays, with spaced rungs, provide maximum airflow for heavy power cables, while perforated trays offer continuous support with moderate ventilation for mixed cable types. Strategically placed holes on the tray bottom or sides enhance airflow and accelerate heat escape, reducing the risk of insulation degradation and electrical derating. 2.

Material Selection Materials with high thermal conductivity, such as aluminum alloys or copper, help transfer heat from cables to the surrounding air efficiently. For outdoor applications, corrosion-resistant materials like galvanized steel, aluminum, or fiberglass-reinforced plastics (FRP) are preferred to withstand UV exposure, moisture, and chemical contaminants while maintaining structural integrity. 3.

Environmental Considerations Outdoor trays must account for ambient temperature, solar radiation, humidity, and potential corrosive elements like salt spray or industrial chemicals. Elevated tray designs prevent ground moisture intrusion, reduce rodent interference, and minimize accidental mechanical damage, all of which indirectly support better heat management. 4.

Load Distribution and Layering Separating high-current cables from low-current or sensitive cables across different layers or sections reduces heat accumulation and improves overall cooling efficiency. Limiting cable fill and maintaining proper spacing ensures that heat does not build up excessively in densely packed trays. 5.

Modular and Maintenance-

Friendly Design Modular tray systems allow for flexible routing and thermal expansion without compromising airflow or joint integrity. Easy access for inspection and maintenance ensures that ventilation remains effective over the tray's operational lifespan.

Practical Recommendations

Use ladder trays for heavy power cables and long outdoor runs where maximum airflow is needed. Use perforated trays for mixed cable systems requiring continuous support with moderate ventilation. Ensure tray perforations or rungs cover no more than 75% of the surface to balance support and airflow.

Select corrosion-resistant, high-conductivity materials suitable for the specific outdoor environment. Maintain adequate spacing and load distribution to prevent localized overheating. Consider elevated installation to avoid ground moisture and improve natural convection.

By combining these design strategies, outdoor cable trays can effectively dissipate heat, protect cable insulation, and ensure long-term operational reliability in challenging environmental conditions.
