Recommendations for Circuit Breaker Distribution Box Configuration

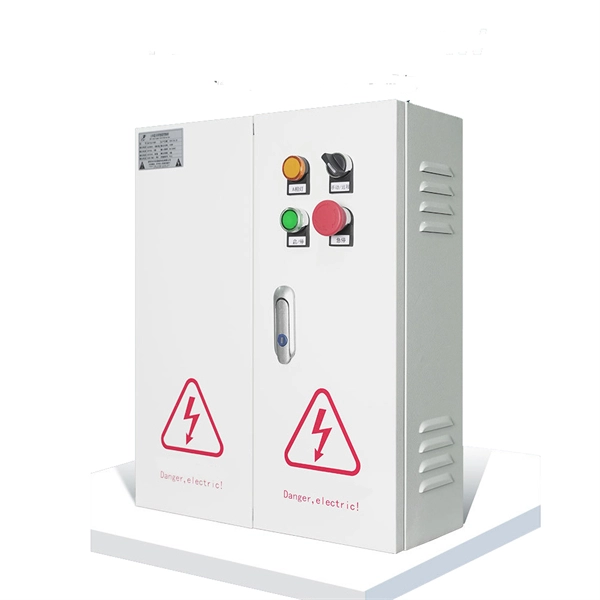

Proper configuration of circuit breakers involves selecting the right breakers, arranging them for balanced loads, ensuring grounding and protection, and following electrical codes like NEC or IEC. Step 1: Choose the Right Distribution BoxSelect a distribution box suitable for your environment (indoor/outdoor), load capacity, and durability. Check for proper IP/NEMA ratings to protect against dust and moisture, and ensure the enclosure material (steel or plastic) is appropriate for your installation site.

Install the box in a dry, accessible area with good ventilation, typically around 1. 5 meters above the floor for easy access. Step 2: Plan the Circuit LayoutUse electrical diagrams to map out all circuits, including lighting, appliances, and specialized equipment.

Identify the total electrical load and categorize it into resistive, inductive, and capacitive loads. Apply diversity factors to account for simultaneous usage and include safety margins to prevent overloads. Leave space for future expansion by choosing a box with extra slots for additional breakers.

Step 3: Select and Size Circuit BreakersChoose breakers that match the current rating of each circuit. The main breaker should control the overall power supply, while branch breakers protect individual circuits. Ensure that wire gauge matches the breaker rating to prevent overheating.

For residential setups, single-phase breakers are common, while industrial setups may require three-phase breakers. Step 4: Install Busbars and WiringUse a busbar to distribute power efficiently to all branch breakers. A comb-style busbar is safer than multiple jumper wires.

Connect the main breaker to the busbar, then connect each branch breaker according to your wiring diagram. Maintain neat cable management, proper insulation, and secure connections to reduce the risk of short circuits or accidental contact. Step 5: Integrate Safety DevicesInclude RCDs (Residual Current Devices) to detect leakage currents and prevent electric shocks.

Each circuit should have its own protection device, and surge protectors can be added for sensitive equipment. Ensure all components are UL/CE-certified and comply with local electrical codes. Step 6: Grounding and TestingSecurely connect all grounding wires to the distribution box and verify continuity.

Before powering on, perform visual inspections and use a multimeter to check for correct voltage, continuity, and absence of short circuits. Label all breakers clearly for easy identification during maintenance. Step 7: Maintenance and DocumentationKeep a record of the installation, including wiring diagrams and breaker specifications.

Schedule regular inspections to ensure long-term reliability and safety. Modular designs can simplify future upgrades or replacements. By following these steps, you ensure a safe, efficient, and code-compliant distribution box setup that protects both people and equipment while allowing for future expansion.
