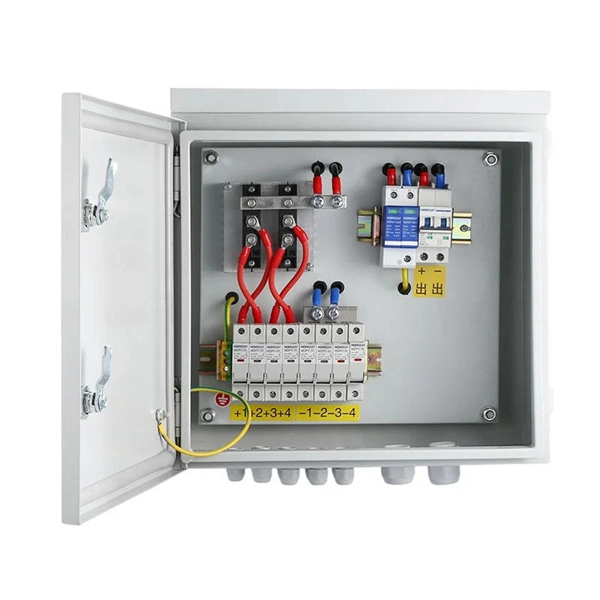

Install temporary distribution box

Installing a temporary distribution box involves selecting the right components, calculating loads, ensuring proper grounding, and following safety and regulatory standards. Step 1: Assess Power RequirementsBefore installation, determine the total electrical load you need to supply, including tools, lighting, and temporary facilities. Calculate the maximum simultaneous usage to avoid overloading the box.

Consider future expansions during the period of use to ensure the box has sufficient capacity. Step 2: Select the Right ComponentsEnclosure: Choose a weatherproof enclosure, typically NEMA 3R rated for outdoor use. Main Inlet: Use a heavy-duty twist-lock receptacle (30A, 50A, or higher) to connect to the power source.

Bus Bars or Main Lugs: Serve as the central point for hot, neutral, and ground conductors. Circuit Breakers: Install individual breakers for each branch circuit to provide overcurrent protection. Receptacles: Include 15A, 20A, and possibly 30A or 50A outlets depending on equipment needs.

Step 3: Proper Grounding and SafetyEnsure the distribution box is grounded correctly. Measure earth resistance and verify connections before commissioning. Grounding prevents electrical shock and ensures compliance with safety standards.

Place the box on dry, stable ground, away from water, mud, or vehicle traffic, and consider protective barriers if necessary. Step 4: Cable RoutingOverhead Cables: Use robust, pliable, and armored cables with proper insulation. Suspend cables to minimize obstruction.

Underground Cables: Use armoured PVC cables buried at a safe depth with clearly marked routes. Distribution Cabling: Multi-strand, multi-core armored or flexible PVC cables are recommended; mineral-insulated copper-clad cables may be used in special cases. Step 5: Installation and CommissioningConnect the main inlet to the power source.

Distribute power through the bus bars to individual breakers and outlets. Verify all connections, test circuit breakers, and ensure proper operation of ground fault protection devices. Maintain documentation of connected loads, inspection reports, and any changes for safety and regulatory compliance.

Step 6: Maintenance and InspectionPerform regular visual inspections and functional tests, especially for ground fault circuit breakers. Establish a maintenance plan appropriate to the duration and intensity of use to prevent failures or hazards. By following these steps, a temporary distribution box can be safely installed, providing reliable power for construction sites, events, or other temporary setups while minimizing risks of electrical hazards and equipment damage.
