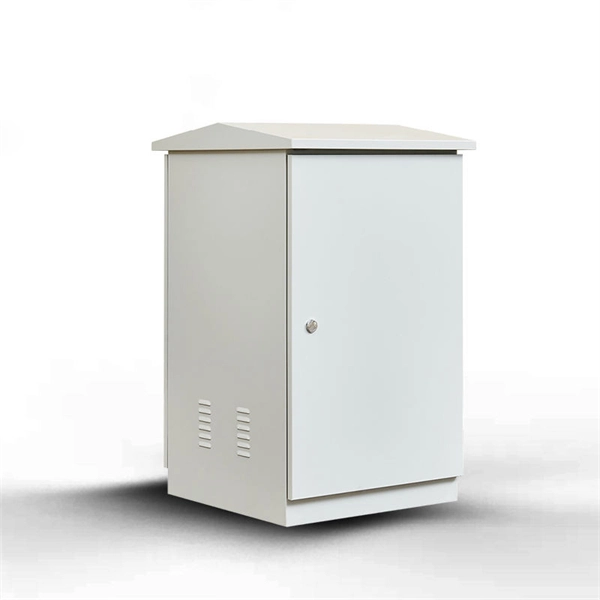

Insufficient wiring holes in the distribution box

Fiber and communications infrastructure knowledge brief Published 16 May 2026

Prepared for preliminary research by the ENSAA knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Insufficient wiring holes in a distribution box can be resolved by carefully drilling additional openings, using proper protective fittings, and ensuring compliance with safety standards.

Understanding the Issue

A distribution box may have too few wiring holes for the number of circuits or devices being installed, which can lead to cramped wiring, poor organization, and potential safety hazards such as short circuits or overheating. Insufficient holes can also make future upgrades or maintenance difficult. Solutions and Best Practices1.

Drilling Additional Holes

Use a thin drill or appropriate tool to create extra openings in the enclosure if needed. Ensure that the new holes are properly sized for the conduit or cable entry. Avoid direct welding or modifications that compromise the structural integrity of the box.

2.

Protective Measures

Install protective rings or grommets around new holes to prevent wire insulation damage. Maintain neat cable management inside the box, leaving 5–10 cm of slack for flexibility and safety. 3.

Wiring Standards

Limit each terminal to one wire, or use a flat washer if two wires must share a terminal. Clearly distinguish phase, neutral, and ground wires using correct color codes. Label all circuits and consider including a wiring diagram for complex setups.

4.

Safety and Compliance

Ensure the box and all modifications comply with local electrical codes (NEC, IEC, or equivalent) and use UL/CE-certified components. Maintain proper grounding and install overload protection devices to prevent fire hazards. Verify insulation integrity and secure all connections to avoid loose wiring.

5.

Professional Assistance

If unsure about modifications, consult a qualified electrician to ensure safety and compliance.

Preventive Measures

Choose a modular or expandable distribution box with sufficient pre-drilled holes for future circuits. Plan wiring layout in advance to avoid overcrowding and ensure adequate ventilation for heat dissipation. Schedule regular inspections and maintenance to detect potential issues early.

By following these steps, you can safely address insufficient wiring holes while maintaining the operational reliability and safety of the distribution box.
