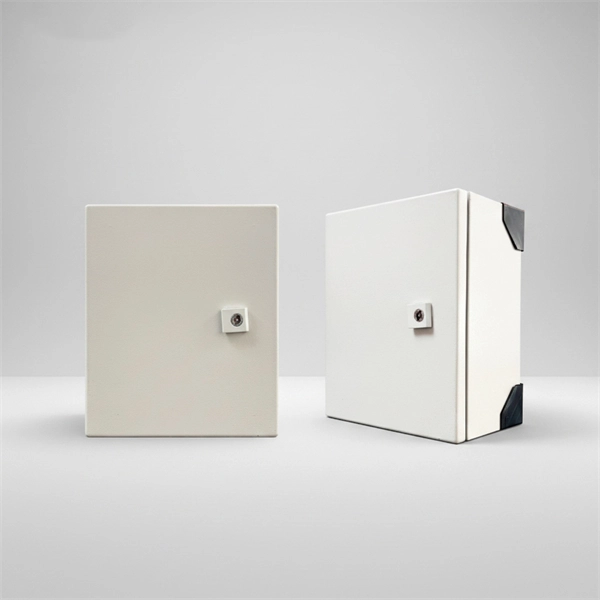

Computer room power distribution box capacity

Computer room power distribution boxes, such as rack PDUs and power distribution cabinets, typically range from 15 kVA to 300 kVA depending on the model and data center requirements. Overview of Power Distribution Units (PDUs)Power distribution units (PDUs) are specialized devices designed to distribute electrical power from a single input source to multiple IT devices in server racks or data centers. Unlike standard power strips, PDUs are engineered for high reliability, robust construction, and often include monitoring and remote control capabilities to manage load and prevent power anomalies.

They can be simple, providing basic power distribution, or intelligent, offering real-time monitoring, load balancing, and remote outlet control.

Capacity Ranges

Rack PD

Us: Commonly used in individual server racks, these units can handle voltages of 120V or 200–240V and are designed to support multiple outlets. Typical capacities vary, but high-density rack PDUs can support significant loads, often up to several kilowatts per rack. Power Distribution Cabinets: Larger PDUs or power distribution racks in high-density data centers can accommodate 84 to 252 circuit breaker positions, providing flexible distribution for multiple racks and higher total loads.

Liebert FP

C Systems: These factory-tested power distribution cabinets offer capacities from 15 kVA up to 300 kVA, providing scalable solutions for both small and large IT environments.

Considerations for Sizing

When determining the capacity of a computer room power distribution box, consider: IT Load Requirements: Calculate the total power consumption of servers, networking equipment, and storage devices. Redundancy and Availability: For critical systems, configurations like N+1 or dual PDUs per rack ensure continuous operation during maintenance or failure. Cooling and Environmental Factors: Higher power densities require adequate cooling to prevent overheating and maintain efficiency.

Scalability: Modular or “pay-as-you-grow” PDUs allow adding capacity as the data center expands.

Summary

The capacity of a computer room power distribution box depends on the type and scale of the unit.

Rack PD

Us typically support individual racks with capacities in the kilowatt range, while power distribution cabinets can handle tens to hundreds of kilovolt-amperes (kVA), such as the Liebert FPC system ranging from 15 kVA to 300 kVA. Proper sizing requires assessing IT load, redundancy needs, and future scalability to ensure reliable and efficient power delivery.
