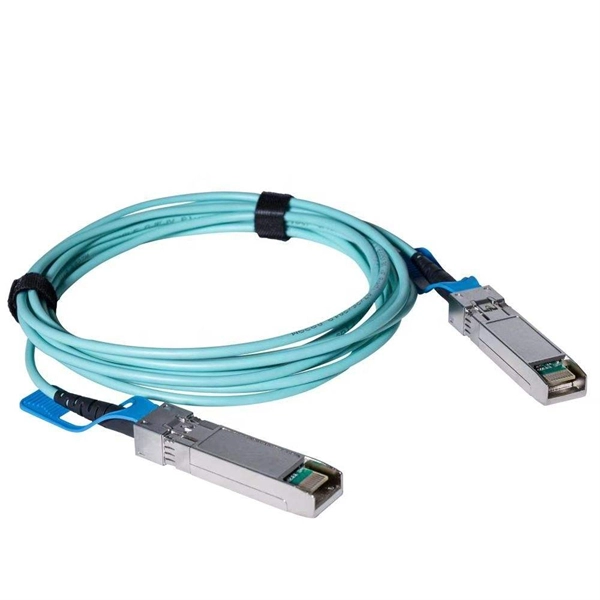

What to connect a fiber optic patch cord to

Connecting a fiber optic patch cord requires careful handling, proper cleaning, and correct connector alignment to ensure optimal signal performance. Step 1: Plan Your InstallationBefore connecting, map out your network and determine where each device will connect. Measure distances to select the correct patch cord length, avoiding excess slack.

Choose the appropriate fiber type: single-mode for long distances and multimode for shorter runs. Also, select the right connector type (LC, SC, MPO/MTP) to match your equipment. Step 2: Prepare the WorkspaceWork in a clean, dust-free environment.

Use anti-static mats and gloves to prevent contamination. Ensure the room temperature is within 15–30°C to avoid thermal stress on the fiber. Step 3: Inspect and Clean ConnectorsEvery connector must be cleaned and inspected before mating.

Even a small amount of dust or dirt can cause signal loss. Use fiber cleaning tools or wipes designed for optical connectors. Avoid touching the fiber endface with your fingers.

Step 4: Handle the Patch Cord ProperlyFiber optic cables are fragile. Avoid sharp bends, twists, or kinks. Follow the minimum bend radius specified for your cable type to prevent attenuation or breakage.

Use cable management tools like patch panels or cable organizers to maintain neat routing. Step 5: Connect the Patch CordAlign the connector with the port and insert it gently until it clicks or is fully seated. Do not force the connection.

Ensure that SC/APC and SC/UPC connectors are not cross-mated, as incompatible endface geometries can damage the fiber and degrade performance. Step 6: Test and LabelAfter connecting, test the link for insertion loss and return loss to confirm proper performance. Label each patch cord and port for traceability, which simplifies future maintenance and troubleshooting.

Additional Tips

Use LSZ

H jackets for indoor environments to reduce smoke and toxic fumes in case of fire, or PE jackets for outdoor use. Regularly inspect and clean connectors to maintain network speed and reliability. Avoid excessive tension on the cable; secure it with cable ties or Velcro straps without crushing the fiber.

By following these steps, you can ensure a stable, low-loss fiber optic connection that supports high-speed data transmission and long-term network reliability.
