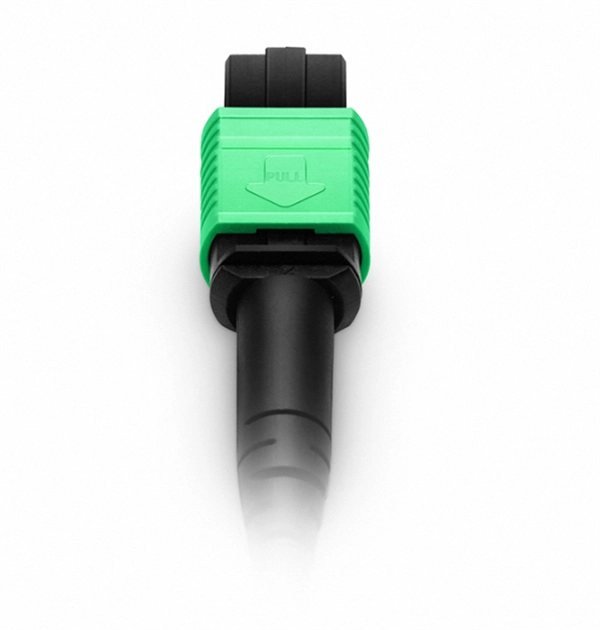

Indoor fiber optic cable and pigtail

An indoor pigtail fiber optic cable is a short fiber with a factory-terminated connector on one end and a bare fiber on the other, designed for indoor splicing and network termination.

Definition and Structure

An indoor fiber optic pigtail is a short cable, typically 0. 5 to 2 meters long, with a factory-polished connector on one end and a bare fiber on the other. The connector end plugs into adapters or patch panels, while the bare fiber is fusion-spliced or mechanically spliced to the main fiber optic cable inside an optical distribution frame (ODF), terminal box, or enclosure.

Unlike patch cords, which have connectors on both ends, pigtails provide a flexible and low-loss interface for network terminations.

Indoor Use

Indoor pigtails are designed without extra protective layers, making them suitable for controlled environments like data centers, telecom rooms, and office buildings. They are not intended for harsh outdoor conditions, as they lack armored jackets or waterproofing. Their design allows for tight bend radii and easy routing in trays, risers, and plenums, optimizing space and installation efficiency.

Types

Indoor pigtails are available in: Single-mode (SMF): 9/125 µm fiber, typically with a yellow jacket, ideal for long-distance, high-bandwidth applications. Multimode (MMF): 50/125 µm or 62. 5/125 µm fiber, often with orange or aqua jackets, suitable for short-range, high-speed networks like data centers.

They can also vary by connector type (LC, SC, ST, FC) and fiber count (simplex, duplex, or multi-fiber bundles),. AdvantagesFactory-quality connectors ensure low insertion loss and high return loss. Time and labor savings compared to field-terminated connectors.

Flexibility to splice into any cable system, allowing clean, serviceable terminations. Cost-effective for indoor installations due to minimal protective layers and ease of handling.

Applications

Indoor pigtails are commonly used in: Patch panels and ODFsTermination boxesCross-connects in telecom and data center networksAny indoor environment requiring precise, low-loss fiber connections In summary, an indoor pigtail fiber optic cable is a practical, factory-terminated solution for indoor fiber network terminations, providing reliable performance, easy splicing, and efficient installation in controlled environments.
