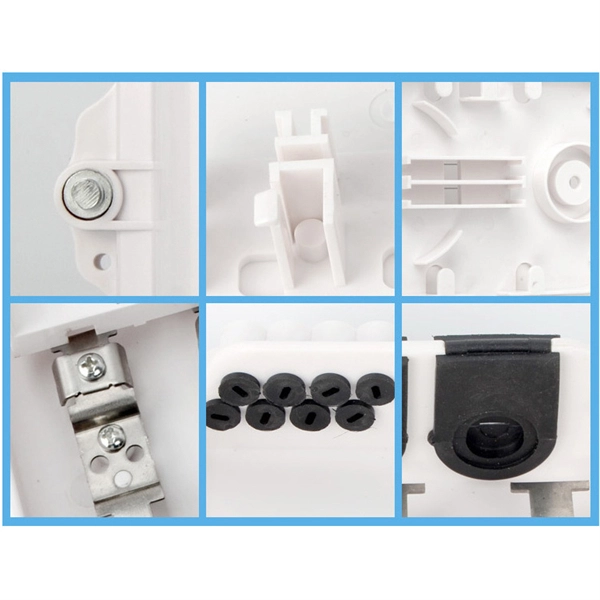

Optoelectronic Converter and Terminal Box

Optoelectronic converters transform optical signals into electrical signals, while terminal boxes provide compact, organized interfaces for connecting and isolating these signals in lab or industrial setups.

Optoelectronic Converters

Optoelectronic converters are devices that convert optical signals, such as light from fiber optics or laser sources, into electrical signals for measurement, processing, or communication purposes. They are widely used in telecommunications, high-speed data acquisition, and laboratory measurements. For example, Keysight's optical-to-electrical converters allow direct conversion of optical telecom or data communication signals into oscilloscopes for system-level testing, supporting speeds up to 56 Gbaud PAM4.

Similarly, Laser Components' MATRIQ series offers broadband optical-to-electrical conversion with configurable gain levels for laboratory and manufacturing applications. In rugged or specialized environments, miniaturized optoelectronic converters are integrated into optical transceivers, such as Moog's Cutlass, Dagger, and Lightning series, which combine transmitter and receiver functions into compact, wall-mount or connector-based designs suitable for military, avionics, and industrial applications.

Terminal Boxes

Terminal boxes are compact enclosures that provide organized connection points for electrical or optoelectronic signals. They often include spring terminals, opto-isolators, or relays to safely interface with digital I/O lines. For instance, ME-UB terminal boxes expand the I/O lines of USB or DAQ modules with opto-isolation or relay functionality, offering 8 channels per module, status LEDs, and easy-to-open spring terminals for flexible wiring.

These boxes are ideal for lab or mobile applications, allowing permanent or temporary wiring without software changes, and they require an external power supply for models with opto-inputs, opto-outputs, or relays.

Applications and Integration

Laboratory and measurement systems: Optical signals from sensors or fiber networks are converted to electrical signals for analysis. Terminal boxes provide safe, organized connections for multiple channels. Industrial and rugged environments: Miniaturized optoelectronic converters integrated into transceivers allow reliable signal transmission in harsh conditions.

Terminal boxes with opto-isolation protect sensitive electronics from voltage spikes. Data acquisition and control: Terminal boxes interface with DAQ boards or USB modules, expanding digital I/O lines while maintaining signal integrity through opto-isolation or relay switching. In summary, optoelectronic converters and terminal boxes complement each other: converters handle the optical-to-electrical signal transformation, while terminal boxes provide organized, safe, and flexible connectivity for these signals in laboratory, industrial, or mobile applications.
