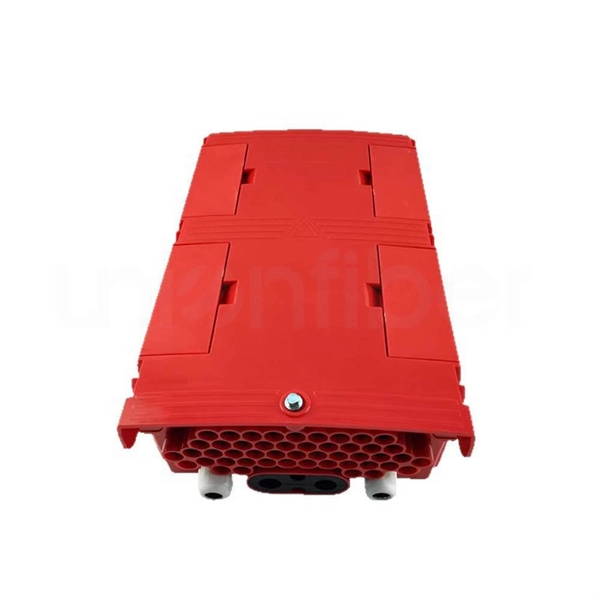

Fiber optic cable connected to the flange in the optical distribution box

Fiber optic cables are connected to the flange in an optical distribution box by carefully routing, securing, and terminating the fibers to adapter panels while maintaining bend radius and protection.

Installation Overview

Prepare the Distribution Box Install the optical distribution box on a rack or wall bracket according to the manufacturer's instructions, ensuring the box is stable and accessible for fiber routing and maintenance. Introduce the Fiber Cable Feed the fiber optic cable into the box through the designated cable inlet. Use a grommet or cable gland to secure the cable and prevent movement that could stress the fibers.

Ensure the cable length inside the box is sufficient to allow the front panel to be fully extended without tension. Protect and Route the Fibers Strip the outer jacket carefully and protect the bare fibers with protective tubes or sleeves. Route the fibers along the bend radius control clips or spools inside the box to prevent sharp bends or microbends that could degrade signal quality.

Use cable ties or movable clips to secure the fibers without crushing them. Connect to the Flange/Adapter Panel Terminate each fiber with a connector (e.g., SC, LC) and insert it into the corresponding port on the adapter panel mounted on the flange. Ensure a one-to-one correspondence between fibers and ports, and verify that the connectors are clean and properly aligned.

The flange serves as the interface for patch cords or pigtails connecting to other network equipment. Splicing (if required) If using pigtails, fusion or mechanical splices are performed in splice trays before connecting to the adapter panel. Splice trays protect the joints and maintain the minimum bend radius.

Organize Excess Fiber Coil any excess fiber neatly in the storage area or slack loops provided in the box. Use zip ties or Velcro straps to keep fibers organized and prevent tangling. Testing and Documentation Perform continuity and optical power tests to ensure proper signal transmission.

Label all ports and fibers clearly for future maintenance and update network documentation.

Best Practices

Avoid exceeding the minimum bend radius of the fiber. Keep fibers clean and free from dust or debris before insertion. Ensure the flange and adapter panel are securely mounted to prevent movement.

Maintain a neat and organized layout to facilitate troubleshooting and future expansion. By following these steps, the fiber optic cable can be safely and efficiently connected to the flange in an optical distribution box, ensuring reliable network performance and ease of maintenance.
