Principles of Fiber Optic Pigtail Processing

Fiber optic pigtail processing involves preparation, precise cleaving, fusion splicing, and protective sleeving to ensure low-loss, high-reliability connections. 1.

Understanding Fiber Optic Pigtails

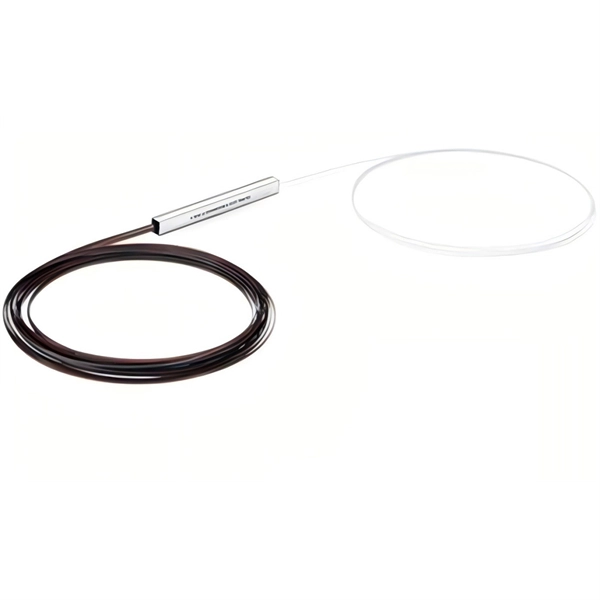

A fiber optic pigtail is a short optical fiber with a factory-terminated connector on one end and a bare fiber on the other. The connector end plugs into equipment or patch panels, while the bare end is designed for fusion or mechanical splicing to incoming fiber cables in the field. Pigtails provide the precision of factory connectors combined with the flexibility of field splicing, making them essential for ODFs, terminal boxes, and splice closures.

2.

Required Tools and Materials

Before processing, ensure you have high-quality tools to avoid signal loss or damage: Fusion Splicer: Uses an electric arc to join two fiber ends into a continuous optical path. Fiber Strippers: Remove the outer buffer and coating without nicking the glass core.

High-

Precision Cleaver: Produces a perfect 90-degree cut for seamless fusion. Cleaning Supplies: Lint-free wipes and 99% isopropyl alcohol to remove debris and oils.

Heat-

Shrink Splice Protection Sleeves: Protects the fragile splice after fusion. 3.

Fiber Preparation

Strip the Fiber: Remove the outer jacket and coating carefully using fiber strippers, exposing the bare glass. Clean the Fiber: Wipe the exposed fiber with alcohol until it is free of dust, oils, or residue. Proper cleaning is critical for low-loss splicing.

Slide on Protection Sleeve: Place a heat-shrink splice sleeve onto the pigtail before splicing to protect the joint later. 4.

Cleaving the Fiber

Use a high-precision cleaver to cut both the pigtail and incoming fiber at a perfect 90-degree angle. This ensures the fibers align correctly in the fusion splicer and minimizes insertion loss. 5.

Fusion Splicing

Align the Fibers: Place the cleaved fibers into the fusion splicer. Splice: The splicer generates an electric arc to melt and fuse the fibers into a single continuous optical path. Inspect the Splice: Most splicers provide a loss estimate and visual confirmation of splice quality.

6.

Splice Protection

After fusion: Slide the heat-shrink sleeve over the splice. Activate the splicer's internal oven to shrink the sleeve, creating a rigid, waterproof, and mechanically strong protection for the splice. 7.

Testing and Verification

Once the splice is complete, test the connection for: Insertion Loss: Ensures minimal signal attenuation. Return Loss: Confirms low back reflection. Continuity: Verifies the optical path is intact.

8.

Key Considerations

Always use factory-terminated connectors on pigtails to ensure consistent performance. Avoid rushing the preparation phase; improper stripping, cleaning, or cleaving can compromise the splice. Pigtails come in single-mode or multimode, with various connector types (LC, SC, FC, ST) and polish types (UPC, APC) to match network requirements.

Special pigtails, such as armored or waterproof, provide additional protection in harsh environments. By following these steps carefully, fiber optic pigtails can be processed to achieve low-loss, high-reliability connections suitable for data centers, FTTH deployments, and telecom networks.
