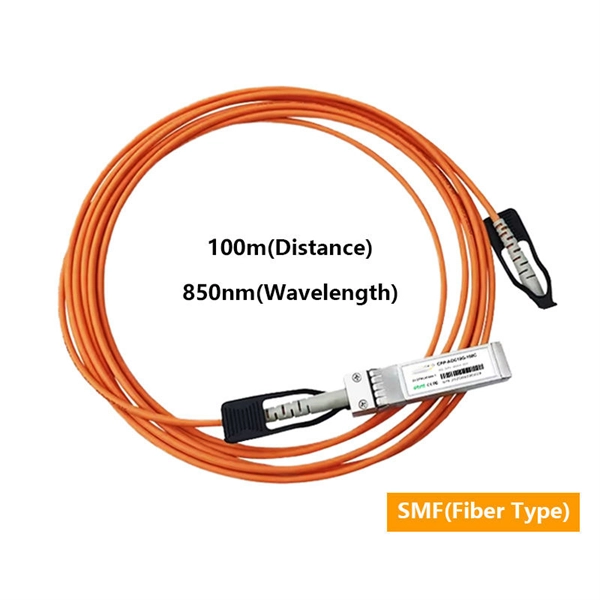

Fiber optic patch cord for low-voltage box

Fiber optic patch cords are essential for low-voltage networks, providing reliable, high-speed connections with options for single-mode or multimode fibers and various connector types.

Overview

Fiber optic patch cords, also called fiber jumpers, are short cables with connectors on both ends that link devices such as switches, servers, patch panels, and optical transceivers in low-voltage systems. They are widely used in LANs, CATV, telecommunications, and data centers, offering low signal loss, high bandwidth, and flexibility for network layouts. Fiber TypesSingle-Mode Fiber (SMF): Features a small core (~9 µm) allowing one light path, ideal for long-distance, high-speed applications.

Common standards include OS1 and OS2, with OS2 optimized for long-haul transmission. Multimode Fiber (MMF): Larger core (50–62. 5 µm) supports multiple light paths, suitable for shorter distances (up to 500 meters) and intra-building connections.

Standards include OM1, OM2, OM3, OM4, and OM5, with higher OM numbers supporting higher bandwidth.

Connector Types

Patch cords come with various connectors to ensure precise alignment and easy installation: LC (Lucent Connector): Small form factor, duplex, commonly used in modern data centers.

S

C (Subscriber Connector): Square, snap-in, widely used in PON and LAN systems.

S

T (Straight Tip): Bayonet mount, often used in legacy networks.

MTR

J: Duplex, compact, used in some telecom applications. Jacket Materials and Installation ConsiderationsPVC: Standard indoor use, not suitable for air ducts. Plenum (OFNP): Fire-resistant, safe for air ducts.

Riser (OFNR): For vertical shafts between floors.

LSZ

H (Low Smoke Zero Halogen): Emits minimal smoke and toxic gas, ideal for high-safety areas. Kevlar yarn is often included under the jacket for added strength and durability, protecting the fiber during handling and installation.

Pre-

Terminated vs. Field TerminationPre-Terminated Patch Cords: Ready-to-use with connectors installed, ideal for quick deployment and minimizing installation errors. Pigtails: One end terminated, the other left bare for fusion splicing inside enclosures, useful for custom-length installations.

Selection Tips

Distance and Bandwidth: Use single-mode for long-distance or high-speed links; multimode for short intra-building runs. Connector Compatibility: Match connectors to your devices (switches, transceivers, patch panels). Environmental Requirements: Choose jacket material based on fire codes, indoor/outdoor use, and safety standards.

Future Scalability: Consider higher OM-rated multimode fibers or OS2 single-mode for potential network upgrades. Fiber optic patch cords provide a reliable, low-voltage solution for modern networks, ensuring high-speed data transmission, minimal signal loss, and flexible installation options. Selecting the right fiber type, connector, and jacket material is key to optimizing performance and longevity.
