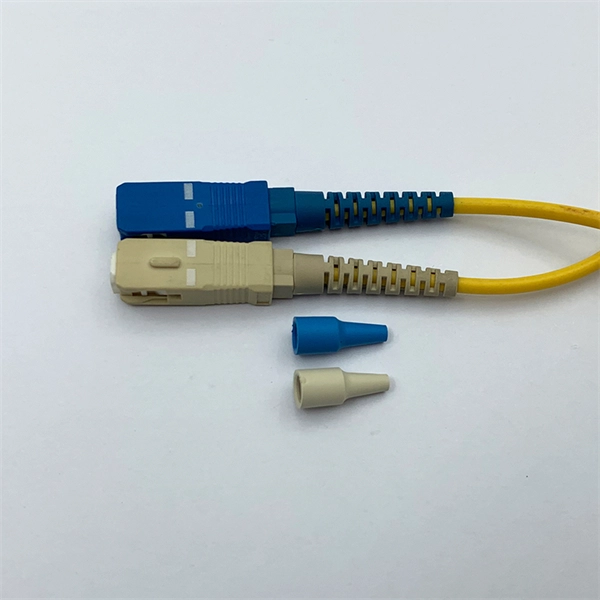

Fiber Optic Patch Cord Assembly Tools

Producing high-quality fiber optic patch cords requires specialized tools for cutting, connector assembly, polishing, curing, and testing. Core Tools and Equipment1.

Cable Preparation Tools

Automatic Cable Cutting Machines: Ensure precise lengths and clean fiber ends. Strippers and Scissors: For removing jackets and preparing fibers for connector assembly. Tape Measures and Cable Ties: For accurate measurement and organization during production.

2.

Connector Assembly Tools

Crimping Machines: Adjustable pressure machines for securing connectors like FC, SC, ST, LC, MU, and E2000 to the fiber, ensuring tensile strength and proper alignment. Hot Air Guns: Used to shrink heat tubing and secure fiber connections. Epoxy Injection Systems and Curing Ovens: Solidify ferrule bonds and ensure stable optical performance.

3.

Polishing Equipment

Fiber Polish Machines: Include Four-corner Pressurized Polish Machines for high-precision polishing and Center Pressurized Machines for lower-quality applications. Polishing Jigs: Finished, semi-finished, and hand-polishing discs for different connector types and batch sizes. Core options range from 12 to 36 cores to improve efficiency.

Polishing Pads and Films: Typically 70°, 80°, 90° pads and films of 30µm, 9µm, and 1µm for achieving UPC or APC end-face geometry. 4. Testing and Inspection ToolsEnd-Face Detectors (200X/400X): Inspect fiber end faces for scratches, blemishes, or chipping.

I

L & RL Test Machines: Measure insertion loss and return loss for single-mode and multi-mode fibers. Visual Fault Locators (VFL Pen 5mW): Detect breaks, poor connections, or bends in fibers. 3D Interferometers: Measure radius of curvature, apex offset, and fiber height for high-grade patch cords.

5.

Automated Production Machines

Fiber Patch Cord Manufacturing Machines: Feature automatic ferrule alignment, high-speed splicing, and real-time quality monitoring. These machines reduce human error, improve insertion and return loss, and support batch production. Patch Cord Assembly Lines: Include cable preparation, crimping, epoxy curing, polishing, and testing stations, designed to meet Telcordia GR-326-CORE standards for industrial-scale production.

Summary

To produce fiber optic patch cords efficiently and with high quality, a combination of preparation tools, connector assembly machines, polishing equipment, curing ovens, and testing devices is essential. For industrial-scale production, automated patch cord manufacturing machines and complete production lines ensure consistency, reduce labor, and maintain strict optical performance standards.
