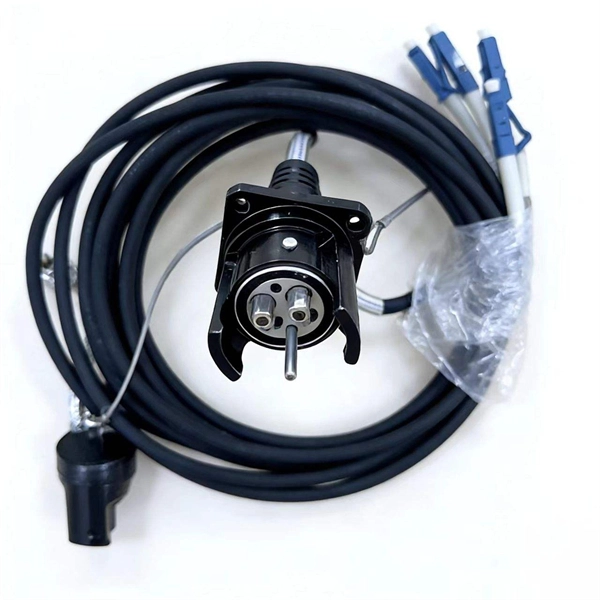

Network port panel for inserting optical modules

Fiber and communications infrastructure knowledge brief Published 10 Nov 2022

Prepared for preliminary research by the ENSAA knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Fiber patch panels or optical distribution frames (ODFs) provide modular ports for inserting optical modules, enabling organized, scalable, and high-density fiber network management.

Overview

A network port panel for optical modules is a device that centralizes fiber terminations and allows easy insertion of optical modules such as LC, SC, or MPO/MTP connectors. These panels serve as the interface between external fiber cables and internal network equipment, providing structured cable management, protection, and maintenance access. Types of PanelsRack-Mount Panels: Standard 19-inch or 23-inch racks, available in 1U, 2U, or 4U heights.

They can accommodate multiple rows of adapters, supporting high-density environments like data centers.

Wall-

Mount Panels: Compact panels suitable for indoor installations, often used in smaller network rooms or distributed setups. Sliding or Drawer Panels: Allow easy access to fiber connections without removing the entire panel, ideal for high-density or frequently serviced networks. DIN-Rail Panels: Mounted on DIN rails in industrial environments, typically for fewer connectors.

Modular and High-

Density Options

Modular Cassettes: Panels can accept modular cassettes or adapter packs, allowing quick exchange between MPO trunks and LC/SC breakout ports. Preterminated Panels: Some panels come factory-terminated with pigtails or MPO trunks, reducing field splicing and installation time.

High-

Density MPO/MTP Panels: Support 12, 24, or 48 fibers per interface, enabling hundreds of terminations per rack unit for scalable deployments.

Installation and Compatibility

Panels can be installed in ANSI/EIA 19-inch, 23-inch, or ETSI 21-inch racks, with two-post or four-post configurations. Breakout modules can be inserted into designated slots, often marked on the faceplate for 8, 16, or 24-port modules. Proper grounding is essential for safety and performance, especially in breakout patch panels.

Key Advantages

Organized Cable Management: Reduces clutter and simplifies maintenance. Scalability: Modular design allows “grow as you go” network expansion.

High-

Density Deployment: Supports large-scale data centers and FTTH networks. Flexibility: Compatible with singlemode, multimode, indoor, outdoor, and plenum-rated cables. In summary, network port panels for optical modules are essential for structured fiber-optic networks, offering modularity, high-density support, and flexible installation options to meet diverse network requirements.
