How to connect the patch panel in a network cabinet

To connect a patch panel, mount it in the cabinet, terminate incoming cables according to T568A/B standards, and organize patch cords to switches with proper labeling and cable management. Step 1: Plan and PrepareBefore installation, plan the rack layout. Determine the number of rack units (RUs) available and decide the placement of the patch panel, switches, and other devices.

Typically, the patch panel is mounted at the top of the cabinet, with switches directly below for short, manageable patch cord connections. Active devices like servers are placed in the lower third to optimize weight distribution and airflow. Use a drawing to map cable paths and port assignments.

Step 2: Mount the Patch PanelSecure the patch panel to the network cabinet using cabinet screws. Ensure it is level and accessible for both front and rear connections. If using a cable manager, attach it to the patch panel to guide cables and prevent strain.

Leave enough slack in the incoming cables to allow for neat routing and future adjustments. Step 3: Prepare and Terminate CablesStrip the outer jacket of each Ethernet cable using a wire stripper. Arrange the individual wires according to the chosen wiring standard (T568A or T568B) and the patch panel's labeling.

Use a punch-down tool to securely seat each wire into the patch panel's IDC terminals. Apply firm, vertical pressure to ensure proper termination. Trim any excess wire to prevent interference or damage.

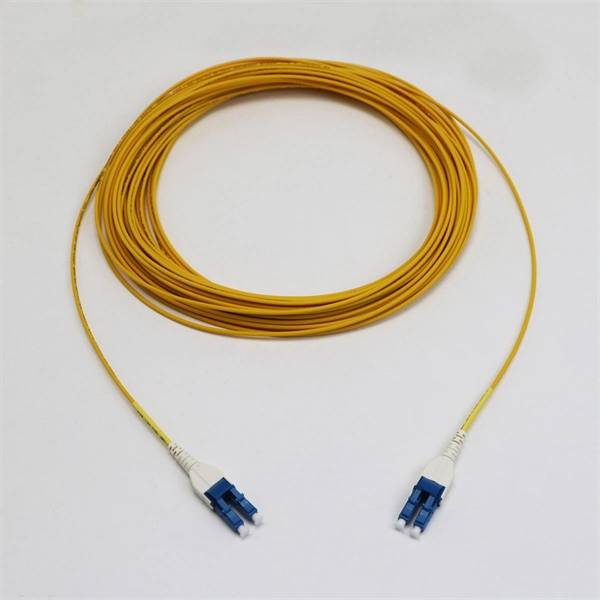

For keystone or tool-free modules, insert the wires into the module's built-in clips and snap them into the panel. Step 4: Connect Patch Cords to SwitchesUse short, color-coded patch cords to connect the front ports of the patch panel to the corresponding switch ports. Maintain consistent color coding (e.g., blue for data, red for VoIP) to simplify troubleshooting and future expansion.

A 1U horizontal cable manager between the patch panel and switch helps maintain neat, traceable connections. Step 5: Label and OrganizeLabel each cable at both ends with port numbers or location identifiers. Ensure cables are routed with proper bend radius and strain relief to prevent damage.

Use zip ties or Velcro straps to secure cables along vertical or horizontal cable managers. Avoid tight bends or tensioned cables, which can degrade signal quality. Step 6: Test and VerifyAfter all terminations, use a cable tester to verify connectivity and signal integrity.

Confirm that each patch cord correctly links the intended patch panel port to the switch port. This step ensures reliable network performance and prevents troubleshooting issues later.

Best Practices

Match patch panel and cable categories (e.g., Cat6A with Cat6A) to maintain performance. Use modular or keystone panels for flexibility in mixed cable types. Maintain airflow by leaving blanking panels in unused rack spaces.

Keep documentation of port assignments and cable paths for future maintenance. Following these steps ensures a clean, organized, and scalable network cabinet, with reliable connections and simplified maintenance.
