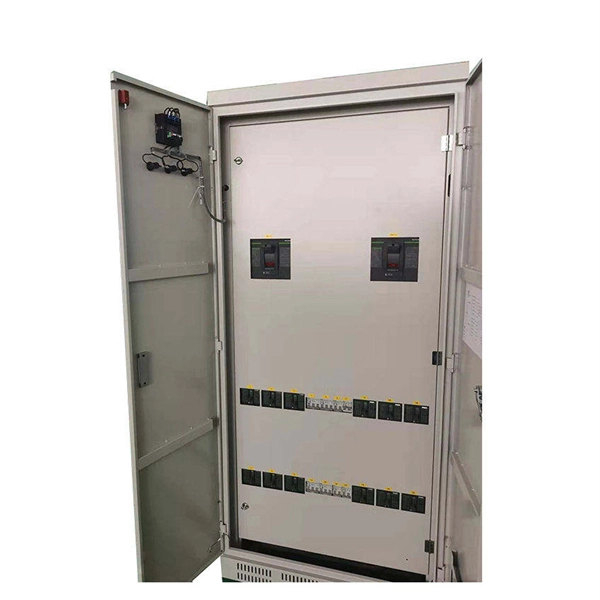

The components of relay protection principles include

Protective relays are intelligent devices that detect abnormal electrical conditions and isolate faults to ensure system safety, reliability, and continuity.

Principles of Relay Protection

Protective relays operate by continuously monitoring electrical quantities such as current, voltage, frequency, and power. When these quantities exceed predefined thresholds, the relay initiates corrective actions, typically by tripping a circuit breaker to isolate the faulty section from the healthy system. Key principles include: Selectivity: Only the circuit closest to the fault should be disconnected to minimize system disruption.

Speed: Relays must operate quickly to prevent equipment damage and maintain system stability. Reliability: Accurate detection of faults without false trips is essential for safe operation. Sensitivity: Relays must detect even small deviations from normal operating conditions to protect critical equipment.

Coordination: Relays are set to operate in a coordinated manner with upstream and downstream devices to ensure proper fault isolation. Relays function by comparing measured electrical quantities against pickup and reset levels. When the actuating quantity (current or voltage) exceeds the pickup value, the relay mechanism activates, closing contacts to trigger the circuit breaker.

Once the quantity falls below the reset level, the relay returns to its original state.

Types of Protective Relays

Protective relays can be classified based on operating principle, construction, and function: Based on Operating PrincipleElectromechanical Relays: Use moving parts and electromagnetic forces; traditional and widely used. Static Relays: Employ electronic components without moving parts, offering faster response. Numerical (Digital) Relays: Microprocessor-based relays with multifunction capabilities, event recording, and communication features.

Thermal Relays: Respond to heat generated by current flow, commonly used for motor protection. Based on FunctionOvercurrent Relay: Operates when current exceeds a preset limit. Differential Relay: Compares currents at two points; used for transformers and generators.

Distance Relay: Operates based on impedance; commonly used in transmission line protection. Earth Fault Relay: Detects leakage currents to ground.

Over/

Under Voltage Relay: Protects against abnormal voltage conditions. Frequency Relay: Trips when frequency deviates from normal limits.

Applications

Transmission and Distribution Lines: Protect against short circuits and overloads. Transformers: Prevent overheating, winding faults, and short circuits. Generators: Safeguard against overload, loss of excitation, and synchronization errors.

Motors: Protect against overcurrent, single phasing, and earth faults. Industrial Systems: Ensure uninterrupted operation of critical equipment. Modern numerical relays provide high accuracy, fast response, self-diagnostics, and multifunction monitoring, making them suitable for complex power systems.

Proper selection, coordination, and testing of relays are crucial to maintain system stability and prevent widespread outages.
