How much time is required for cable tray installation

Cable tray installation typically requires 1–3 man-hours per 10 feet of tray, depending on tray type, support spacing, and project complexity.

Factors Affecting Installation Time

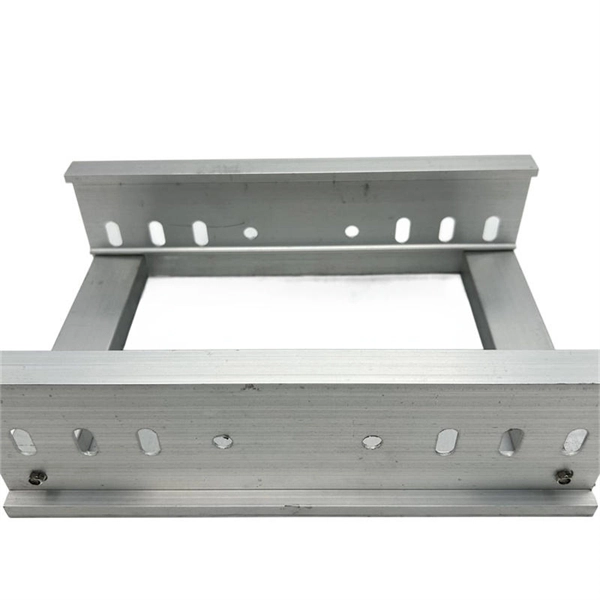

Tray Type and Material: Ladder-type trays are easier to install and allow faster cable placement, while solid-bottom or perforated trays may take longer due to additional handling and alignment requirements. Materials like aluminum or fiberglass are lighter and easier to handle than steel, which can affect labor time. Support Spacing: Standard support spacing ranges from 1.

5 to 3 meters (5–10 feet) for most trays, with closer spacing increasing installation time but improving rigidity. Heavy-duty or long-span trays may require fewer supports but more precise alignment, which can also affect labor hours. Project Complexity: Straight runs are faster to install, while multiple bends, tees, and vertical transitions increase time due to additional fittings, connectors, and alignment checks.

Outdoor runs may require expansion joints to accommodate thermal expansion, adding to installation time.

Man-

Hour Estimates: According to industry references, installing a standard cable tray with accessories such as covers, elbows, tees, and connectors generally requires 1–3 man-hours per 10 feet of tray. Complex industrial setups with multiple layers or high cable density may require additional time. Preparation and Planning: Pre-cutting rods, pre-threading nuts, and using laser levels for alignment can significantly reduce installation time.

Proper planning of the tray route, load calculations, and cable separation ensures smoother installation and minimizes rework.

Installation Steps Overview

Plan the Route: Mark tray paths considering clearance, load, and cable separation. Select Tray Type and Size: Match tray width and depth to cable count and type. Install Supports: Hang rods or brackets at specified intervals, typically 1.

5–3 meters. Assemble Trays: Connect sections using fittings and ensure alignment. Lay Cables: Place cables carefully, maintaining fill limits (40–50% for power cables) and proper separation.

Secure and Ground: Fasten cables, provide strain relief, and ground metallic trays if required. Inspection: Verify alignment, support spacing, and compliance with NEC or local codes.

Summary

The installation time for cable trays varies based on tray type, support spacing, project complexity, and preparation. For standard commercial or industrial projects, 1–3 man-hours per 10 feet of tray is a reasonable estimate, with additional time for complex layouts, vertical runs, or high-density cable installations. Proper planning, pre-fabrication, and adherence to safety standards can optimize installation efficiency.
