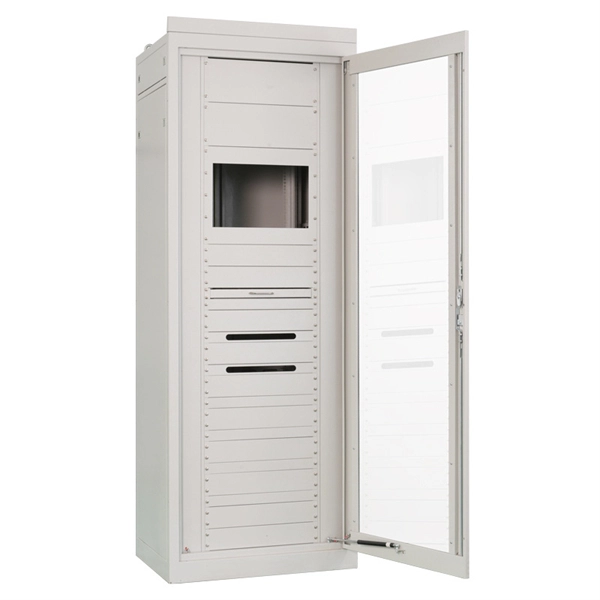

Distribution Box Switch Box Assembly Method

The assembly of a distribution box involves structured steps including design, component installation, wiring, testing, and final inspection to ensure safety and compliance with standards. Step 1: Design and PlanningBefore assembly, the distribution box must be designed according to the IEC 61439 / EN 61439 standards, which define operating conditions, assembly requirements, and technical properties for low-voltage switchgear assemblies. This includes selecting the appropriate type of box (surface-mounted, flush-mounted, pole-mounted) and determining the number of circuits, protective devices, and internal layout.

Step 2: Material and Component PreparationEnclosure fabrication: Use high-quality materials, often processed with CNC technology for precision. Internal components: Circuit breakers, fuses, busbars, relays, and wiring channels are prepared and verified for compliance with safety standards. Brackets and mounting hardware: Ensure all supports and fasteners are ready for secure installation.

Step 3: Mechanical AssemblyInstall brackets, busbars, and mounting plates inside the enclosure. Secure components using screws or fasteners, typically with an electric drill for efficiency. Ensure proper spacing to allow airflow and prevent overheating.

Step 4: Wiring and Electrical ConnectionsRoute wires neatly through designated channels to maintain organization and reduce interference. Connect protective devices (circuit breakers, fuses) to the main busbars and downstream circuits. Verify wire sizes and insulation meet the rated current and voltage requirements.

Label all circuits for easy identification and maintenance. Step 5: Testing and VerificationElectrical safety tests: Insulation resistance, grounding continuity, and load tests. Ingress Protection (IP) tests: Check dustproof and waterproof performance if applicable.

Compliance verification: Ensure the assembly meets IEC/EN 61439 standards, including temperature rise and short-circuit withstand capacity. Step 6: Final Inspection and PackagingConduct a final quality control checklist to confirm all specifications are met. Pack the distribution box carefully using wooden crates, export cartons, or pallets to prevent damage during transport.

Documentation: Include a declaration of conformity and assembly records for legal and safety compliance.

Best Practices

Maintain ergonomic workflow to reduce assembly errors and improve efficiency. Keep wiring neat and organized to facilitate maintenance and reduce on-site rework. Follow manufacturer guidelines for component installation and torque specifications.

Ensure all personnel are trained in electrical safety and assembly procedures. By following these steps, a distribution box can be assembled safely, efficiently, and in compliance with international standards, ensuring reliable operation in residential, commercial, or industrial applications.
