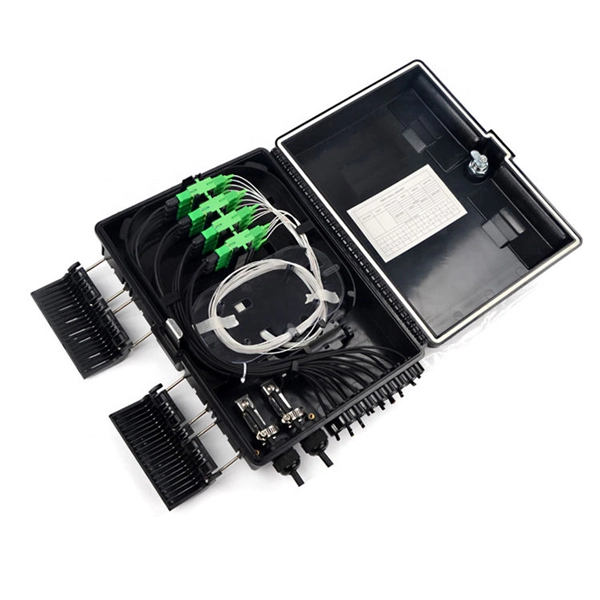

Color-coded communication optical cables

Fiber optic cables use standardized color codes to identify individual fibers, buffer tubes, and cable types, ensuring accurate installation, maintenance, and troubleshooting.

Standard Fiber Color Coding

Fiber optic color coding follows the TIA/EIA-598-C standard, which provides a universal 12-color sequence for individual fibers: 1-Blue, 2-Orange, 3-Green, 4-Brown, 5-Slate (Gray), 6-White, 7-Red, 8-Black, 9-Yellow, 10-Violet, 11-Rose, 12-Aqua. This sequence repeats for cables with more than 12 fibers, often with stripes or tube-based differentiation to maintain unique identification in high-count cables (e.g., 48, 96, 144 fibers). For example, in a 144-fiber cable, fiber #45 would be the Yellow fiber inside the Brown tube.

For 16-fiber MPO connectors, a 16-color sequence is sometimes used: 13-Olive, 14-Magenta, 15-Tan, 16-Lime, which is common in European standards or high-density ribbon cables.

Outer Jacket Color Coding

The outer jacket color indicates the fiber type and mode: Yellow: Single-mode fiber (OS1/OS2), 9µm core, long-distance transmissionOrange: Multimode fiber (OM1/OM2)Aqua: Multimode fiber (OM3)Violet: Multimode fiber (OM4)Lime Green: Multimode fiber (OM5) This color differentiation allows technicians to quickly identify fiber types in complex installations.

Connector Color Coding

Fiber optic connectors also follow color conventions: Single-mode UPC: BlueSingle-mode APC: GreenMultimode OM1: Beige or GrayMultimode OM2: BlackMultimode OM3: AquaMultimode OM4: VioletMultimode OM5: Lime Green These colors help prevent misconnection and ensure proper polarity and signal integrity.

Purpose and Benefits

Color coding in optical cables serves several critical functions: Error Reduction: Prevents mis-splicing and cross-connections, especially in high-density cables. Operational Safety: Technicians can quickly distinguish fibers and components, reducing the risk of mistakes. Global Consistency: Standardized colors allow technicians worldwide to interpret fiber identification correctly.

Efficient Maintenance: Simplifies troubleshooting, testing, and network upgrades in large-scale deployments like data centers or FTTH networks.

High-

Count Cable Identification

For cables with multiple buffer tubes, the “Tube and Fiber” system is used. Each tube is assigned a color from the 12-color sequence, and fibers inside the tube follow the same sequence. This ensures unique identification for every fiber in high-count cables.

Summary

By adhering to standardized color codes for fibers, buffer tubes, outer jackets, and connectors, communication optical cables achieve reliable identification, safe handling, and efficient network management. This system is essential for modern telecommunications, data centers, and enterprise networks, where hundreds or thousands of fibers may be deployed in a single installation.
