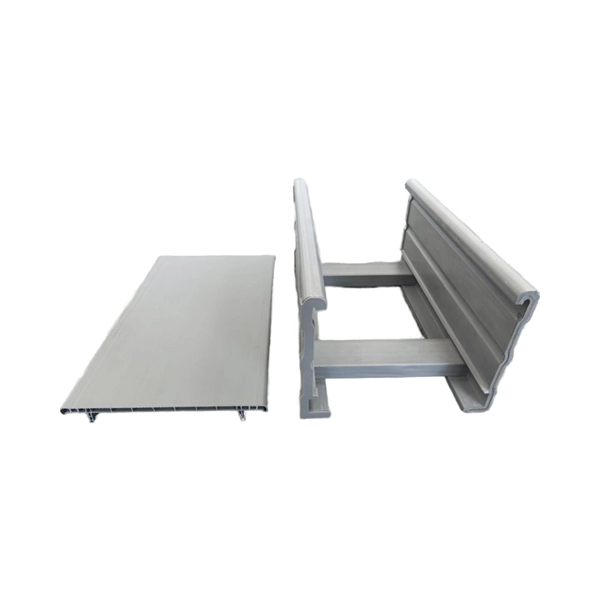

Do cable trays need to be equipped with hangers

Yes, cable trays require hangers or other support systems to safely carry the weight of cables and maintain structural integrity.

Importance of Hangers

Cable trays are designed to organize and support insulated cables in buildings, but the weight of the cables must be properly supported to prevent sagging, bending, or collapse. Hangers and other support elements transfer the load from the tray to the building structure, such as ceilings, walls, or steel beams, ensuring safety and compliance with electrical standards. Without proper supports, cables can hang dangerously, creating hazards and potential damage to the system.

Types of Supports

Cable tray supports include: Ceiling-hung (trapeze) supports: Ideal for electrical rooms and data centers, suspending trays from overhead structures. Wall-mounted brackets: Suitable for narrow corridors or wall installations. Floor-mounted or cantilever brackets: Used where overhead or wall mounting is not feasible.

Center suspensions and support brackets: Provide additional stability for long spans or heavy loads.

Spacing and Load Considerations

The spacing of hangers depends on the tray type and cable load: Heavy power cables: Hangers every 1–1. 5 meters to prevent bending. Light cables (e.g., data or internet): Hangers can be spaced up to 3 meters.

Vertical runs: Supports are typically required every 1. 5 meters. Extra supports are recommended at points of concentrated load or directional changes.

Material and Corrosion Protection

Hangers and trays should have compatible finishes to prevent galvanic corrosion, especially in moist or industrial environments. Common materials include hot-dip galvanized, epoxy-coated, or stainless steel. Indoor dry areas may use electro-galvanized finishes, while outdoor or wet areas require more robust coatings.

Compliance and Safety

Cable tray supports must comply with standards such as IEC 61537, NEMA VE 2, and NEC, ensuring structural integrity, fire resistance, and durability. Properly installed hangers prevent deflection, maintain cable organization, and reduce the risk of electrical hazards. In summary, cable trays cannot function safely without hangers or equivalent supports, and careful selection of type, spacing, and material is essential for a reliable and compliant installation.
