Application Scenarios of Fiber Optic Pigtails

Fiber optic pigtails are widely used for terminating and connecting optical fibers in data centers, telecom networks, FTTH deployments, and industrial or outdoor environments. Key Applications1.

Data Centers and High-

Density OD

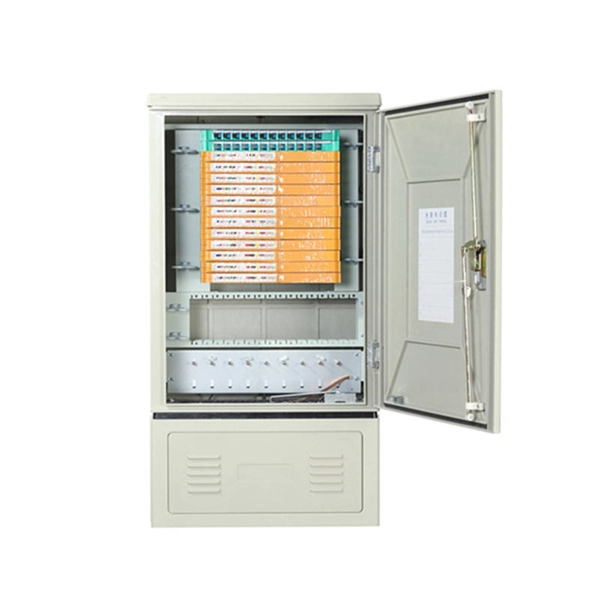

Fs Fiber optic pigtails are essential in optical distribution frames (ODFs) and high-density panels, allowing multiple fibers from backbone cables to be terminated neatly and efficiently. Multi-fiber pigtails (e.g., 12, 24, 48 fibers) are commonly used in these environments to manage large-scale fiber counts while maintaining low insertion loss and high return loss. 2.

FTT

H (Fiber to the Home) Deployments In FTTH networks, pigtails connect the main fiber backbone to subscriber drop cables. Single-mode pigtails are typically used for long-distance transmission, ensuring minimal signal attenuation and reliable connectivity in residential or commercial installations. 3.

Industrial and Rugged Environments Armored or waterproof pigtails are deployed in industrial telecom rooms, outdoor splice closures, and military applications. These pigtails provide protection against mechanical stress, moisture, and corrosion, making them suitable for harsh conditions. 4.

LA

N, WAN, and CATV Networks Fiber optic pigtails are used to connect backbone cables to active equipment such as transceivers, switches, and patch panels. They are compatible with various connector types (LC, SC, ST, FC, MT-RJ, E2000) and fiber types (single-mode or multimode), providing flexibility for different network architectures. 5.

Test and Measurement Applications Pigtails are also used in laboratory or field testing setups, where factory-terminated connectors ensure precise, low-loss connections for accurate measurement of optical signals. Advantages in ApplicationsLow-Loss Termination: Factory-polished connectors reduce insertion loss and back reflection compared to field-terminated connectors. Scalability: Multi-fiber pigtails allow rapid termination of high-count cables in dense network environments.

Flexibility: Available in single-mode, multimode, armored, waterproof, and ribbon formats to suit diverse installation conditions.

Cost-

Effectiveness: Reduces labor and time for field termination while maintaining high performance. In summary, fiber optic pigtails are versatile components that bridge backbone cables to active equipment, support high-density and long-distance networks, and provide reliable, low-loss connections across indoor, outdoor, and industrial applications. Proper selection of fiber type, connector, and environmental protection ensures optimal network performance and longevity.
