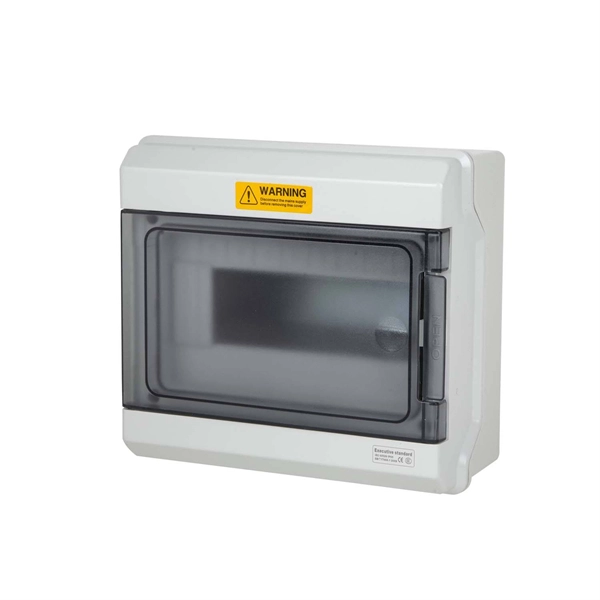

Overheating of terminals in the distribution box

Overheating of terminals in a distribution box is primarily caused by loose connections, excessive current, poor ventilation, or undersized components, and it poses serious fire and equipment risks.

Common Causes

Loose Connections: High-resistance contact points at terminals generate localized heat under load. Even slightly loose screws or lugs can create hotspots that accelerate insulation degradation and increase the risk of fire. Current Overload: Operating circuits beyond their rated capacity causes excessive Joule heating.

Undersized busbars, thin copper paths, or mismatched breakers can exacerbate this effect. Poor Ventilation: Enclosures with inadequate airflow trap heat, raising internal temperatures and shortening the lifespan of insulation and terminal materials. Material and Contact Issues: Low-conductivity metals, insufficient tightening pressure, or oxide formation on terminals increase resistance, creating a vicious cycle of thermal accumulation.

Environmental Factors: Dust, debris, and high ambient temperatures can further impede heat dissipation, contributing to overheating.

Risks

Overheated terminals can lead to equipment failure, insulation breakdown, fire hazards, and reduced operational reliability. In industrial settings, prolonged thermal stress can embrittle flame-retardant casings and compromise electrical isolation.

Preventive Measures

Check and Tighten Connections: Use a calibrated torque wrench to ensure all terminal screws meet manufacturer specifications. Re-torque semi-annually to maintain low contact resistance. Verify Load Against Ratings: Ensure the current does not exceed the terminal or busbar capacity.

For high-current applications, consider upgrading to heavy-duty terminal blocks. Improve Ventilation: Maintain adequate clearance around the enclosure, install ventilation louvers or cooling fans, and monitor ambient temperature to facilitate heat dissipation. Regular Inspections: Use infrared thermography to detect hotspots before visible damage occurs.

Inspect for dust accumulation, corrosion, or signs of oxidation. Proper Sizing and Load Balancing: Ensure busbars, wires, and breakers are appropriately sized for the load, and distribute electrical loads evenly across phases to prevent neutral overheating. Environmental Control: Keep the enclosure clean, maintain gaskets, and consider heat exchangers or fans in high-temperature environments.

Summary

Overheating in distribution boxes is a preventable issue if connections are tight, loads are within rated limits, ventilation is adequate, and regular inspections are performed. Implementing these measures enhances safety, prolongs equipment life, and reduces the risk of fire or system failure.
