What are the small structures of optical fiber cables

Fiber and communications infrastructure knowledge brief Published 17 Dec 2024

Prepared for preliminary research by the ENSAA knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

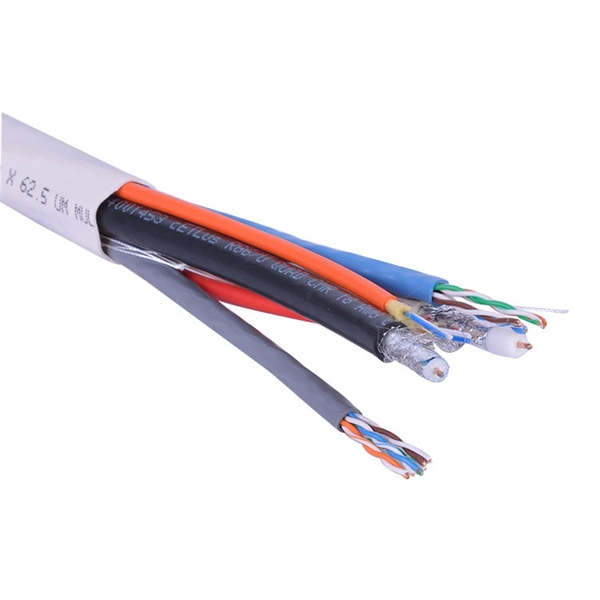

The small structures of optical fiber cables include the core, cladding, coating, and protective layers that enable light transmission and protect the fiber.

Core

The core is the central, smallest part of the optical fiber where light signals travel. It is typically made of high-purity glass (silicon dioxide) or sometimes plastic, and its diameter varies depending on the fiber type: 9–10 microns for single-mode fibers and 50–62. 5 microns for multimode fibers.

The core's high refractive index allows it to guide light efficiently over long distances with minimal loss.

Cladding

Surrounding the core is the cladding, a layer of glass with a lower refractive index. This difference in refractive index causes total internal reflection, keeping light confined within the core and preventing signal loss. The cladding typically has a diameter of 125 microns and is essential for maintaining signal integrity.

Coating and Buffer Layers

The coating or resin layer surrounds the cladding to protect the fiber from physical damage, moisture, and microbending. Some fibers also include tight buffer tubes, which provide additional protection and make handling easier during installation.

Strength Members and Jacket

To enhance durability, optical fibers include strength members, often made of aramid yarn (Kevlar), which prevent stretching and mechanical stress. The outer jacket encases all internal components, providing protection against environmental hazards such as abrasion, chemicals, and UV exposure.

Summary

In essence, the small structures of an optical fiber cable—core, cladding, coating, buffer layers, and strength members—work together to transmit light efficiently while protecting the fragile glass fibers. These components are critical for both single-mode and multimode fibers, ensuring reliable data transmission in telecommunications and networking applications.
