Comprehensive Guide to Using Optical Modules

Optical modules are compact devices that convert electrical signals into optical signals and vice versa, enabling high-speed data transmission over fiber optic networks.

Overview and Function

Optical modules, also known as optical transceivers, operate at the physical layer of the OSI model, bridging electrical network devices and optical fibers. Their primary function is optoelectronic conversion: transmitting electrical signals as light and receiving optical signals as electrical signals. They are essential in fiber optic communication systems, supporting long-distance, high-speed, and low-interference data transmission.

Core ComponentsTOSA (Transmitter Optical Sub-Assembly): Converts electrical signals into optical signals using a laser diode (LD) or LED.

L

Ds are preferred for higher output power, lower energy consumption, and better coupling efficiency, while LEDs are cost-effective for short-distance, low-rate transmissions.

TOS

A includes a light source, optical interface, monitoring photodiode, housing, and electrical interface. An Automatic Power Control (APC) circuit ensures stable output power.

ROS

A (Receiving Optical Sub-Assembly): Converts incoming optical signals back into electrical signals. It contains a photodetector (PIN or Avalanche Photodiode, APD), a Trans-impedance Amplifier (TIA), and a Post Amplifier.

AP

Ds provide higher sensitivity, improving receiver performance by 6–10 dB compared to PIN photodiodes.

PCB

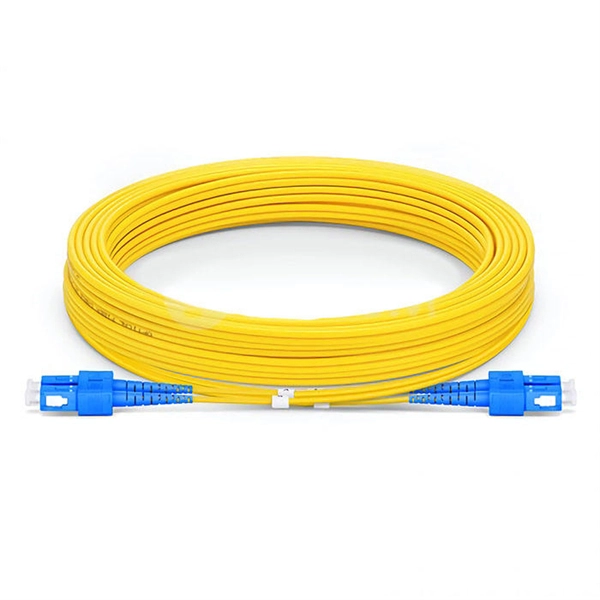

A (Printed Circuit Board Assembly): Integrates active and passive electronic components, ensuring the module's functionality and signal processing. Digital Diagnostic Monitoring (DDM): Monitors real-time parameters such as temperature, voltage, optical power, and laser bias current, enhancing reliability and interoperability. Fiber Optic Connectors: Interface the module with single-mode or multi-mode fiber cables, enabling physical connectivity.

Types and Form Factors

Optical modules come in various form factors and data rates to suit different network needs: SFP (Small Form-factor Pluggable): Up to 4. 25 Gbps, common in enterprise networks. SFP+: Up to 10 Gbps, suitable for data centers.

QSF

P (Quad SFP): 40 Gbps and beyond, used in high-performance computing.

CF

P (C Form-factor Pluggable): 100 Gbps and higher, for long-haul or metro networks. Modules may be single-mode (long-distance) or multi-mode (short-distance), and can support standards like Ethernet, Fibre Channel, SONET/SDH.

Working Principle

Transmission (Tx): Electrical signals are processed by a driver chip and converted into modulated optical signals by the TOSA. Reception (Rx): Optical signals are received by the ROSA, converted to electrical signals, amplified, and output for network processing.

Applications

Optical modules are widely used in: Data Centers: High-speed server-to-server and storage communication. Telecommunications: Backbone networks and long-distance data transmission. Enterprise Networks: Connecting switches, routers, and servers.

Broadcasting: High-definition video transmission. Industrial Automation: Reliable communication in environments with electromagnetic interference.

Selection Criteria

When choosing an optical module, consider: Data Rate: Match the network speed (1 Gbps, 10 Gbps, 40 Gbps, 100 Gbps). Distance: Single-mode for long distances, multi-mode for short distances. Compatibility: Ensure module works with existing network equipment.

Form Factor: SFP, SFP+, QSFP, CFP based on hardware. Budget: Balance performance and cost constraints. Understanding these aspects ensures optimal network performance, reduced latency, and reliable communication.
