What to connect at both ends of a fiber optic patch cord

A fiber optic patch cord should have connectors at both ends that plug into compatible optical devices, such as transceivers, switches, patch panels, or ONTs, enabling direct optical communication.

Purpose of Fiber Patch Cords

A fiber optic patch cord, also called a fiber jumper, is a pre-terminated cable with connectors on both ends designed to connect two optical devices for data transmission. It acts as a bridge between devices, allowing signals to pass efficiently with minimal loss and low latency.

Typical Connections

Transceiver to Transceiver: Connects optical modules in switches, routers, or servers. Switch to Patch Panel: Links network switches to fiber distribution frames or cross-connect panels.

ONT to FTT

H Box: Connects optical network terminals to customer premises equipment in fiber-to-the-home setups.

Connector Types

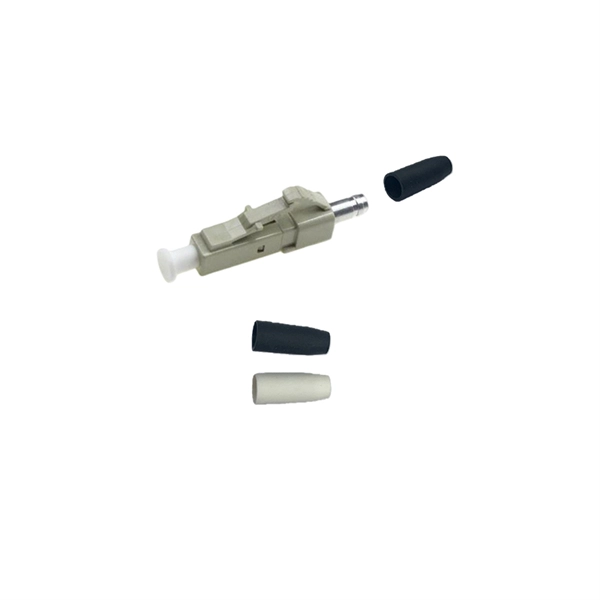

The connectors at each end must match the device ports. Common types include: LC (Lucent Connector): Small form factor, duplex, widely used in data centers.

S

C (Subscriber Connector): Snap-in, larger, common in FTTH and CATV.

S

T (Straight Tip): Bayonet-style, older installations.

F

C (Ferrule Connector): Screw-on, secure for high-vibration environments. Simplex vs DuplexSimplex: Single fiber, one-way communication. Duplex: Two fibers, supporting bidirectional communication (Tx/Rx), commonly used in Ethernet and PON links.

Fiber Type ConsiderationsSingle-mode (OS1/OS2): Long-distance, backbone, or outdoor links. Multimode (OM1/OM2/OM3/OM4/OM5): Short-distance, high-speed intra-data center connections.

Summary

To use a fiber optic patch cord correctly, ensure that both ends are terminated with connectors compatible with the devices you are linking, and choose the appropriate fiber type, connector style, and simplex/duplex configuration based on your network requirements. This ensures optimal signal transmission, minimal loss, and reliable network performance.
