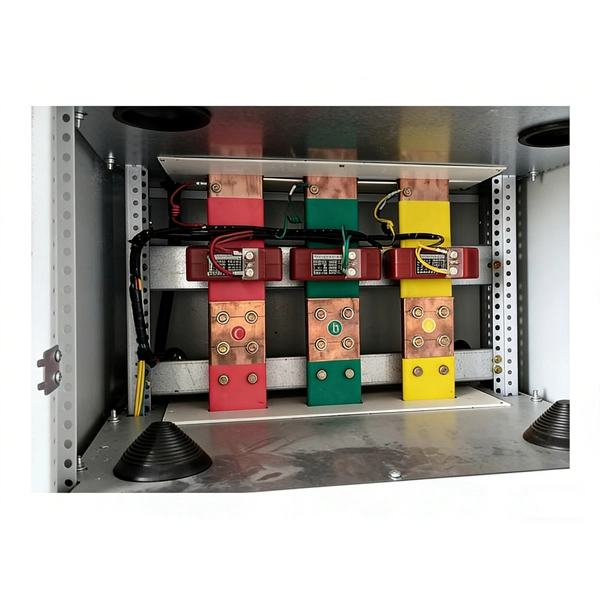

Does the switchgear include busbars

Yes, busbars are integral components inside switchgear, serving as the main conductors that distribute electrical current to various circuits.

Role of Busbars in Switchgear

A busbar is a metallic conductor, typically made of copper or aluminum, that carries electricity within switchgear assemblies. It connects incoming power sources to circuit breakers and outgoing feeders, ensuring smooth and reliable current distribution throughout the system. Busbars act as the backbone of the switchgear, providing a stable and low-impedance path for high currents while supporting mechanical and thermal stresses.

Types of Busbars

Switchgear may include different busbar types depending on design requirements: Rigid busbars: Solid metal bars, commonly used for main current paths due to their strength and stability. Flexible busbars: Made from braided or laminated copper layers, used where vibration or movement occurs, such as connections to breakers. Flat or tubular busbars: Flat bars improve cooling and ease of installation, while tubular bars are lighter and enhance heat dissipation.

Laminated busbars: Thin conductors separated by insulation, used in high-current or compact designs.

Standards and Safety

Busbars in switchgear must comply with international standards such as IEC 61439 for low-voltage assemblies and ANSI/IEEE standards for medium-voltage systems. These standards ensure proper thermal performance, mechanical strength, insulation, and short-circuit withstand capability, which are critical for safe and reliable operation.

Summary

In summary, busbars are a fundamental part of switchgear, forming the main electrical pathways that interconnect incoming and outgoing circuits. Their design, material, and configuration are carefully engineered to meet safety, reliability, and performance standards, making them indispensable in both low- and medium-voltage switchgear assemblies.
