Fiber optic connectors can be divided into

Fiber and communications infrastructure knowledge brief Published 28 Sep 2021

Prepared for preliminary research by the ENSAA knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Fiber optic connectors can be divided based on fiber mode, connector style, assembly type, and polishing method. Classification by Fiber ModeFiber optic connectors are categorized into single-mode (SM) and multimode (MM) types. Single-mode connectors allow only one light mode to pass through, making them suitable for long-distance and high-bandwidth applications, while multimode connectors support multiple light modes, ideal for shorter distances and local networks.

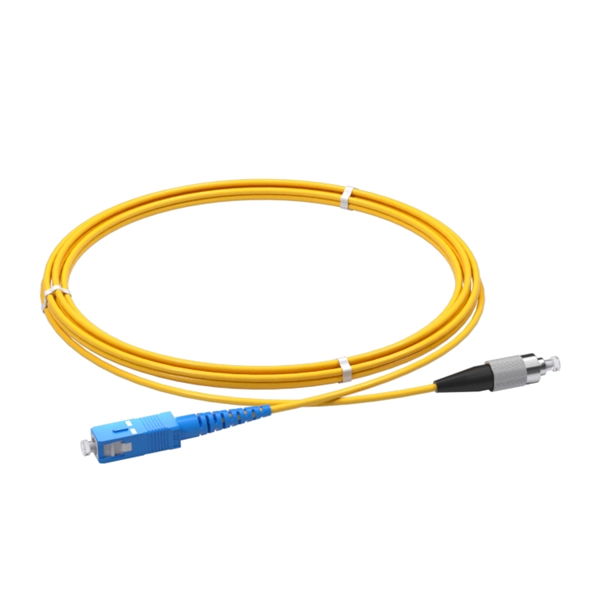

Classification by Connector StyleCommon connector styles include: SC (Subscriber Connector): Square-shaped, widely used in telecom and data networks.

L

C (Lucent Connector): Smaller form factor, available in simplex and duplex versions.

S

T (Straight Tip): Bayonet-style, popular in campus and corporate networks.

F

C (Ferrule Connector): Screw-type, precise alignment, often used in measurement equipment and single-mode applications. MTP/MPO: Multi-fiber connectors for high-density applications, supporting 12–24 fibers simultaneously. Classification by Assembly StyleConnectors can be simplex (single fiber) or duplex (two fibers side by side).

Duplex connectors are often used in paired fiber applications, such as bidirectional communication. Classification by Polishing MethodThe fiber endface can be polished differently, affecting performance: UPC (Ultra Physical Contact): Convex end-face, low return loss (-40 to -55 dB), typically blue-coded.

AP

C (Angled Physical Contact): 8° angled end-face, very low return loss (up to -60 dB), typically green-coded, ideal for high-precision or TV signal transmission.

Other Considerations

Connectors may also be classified by mechanical construction (fixed vs active connectors), ferrule material (ceramic, metal, or plastic), and application (telecom, data centers, industrial networks) to ensure compatibility and optimal performance. Choosing the right fiber optic connector depends on the fiber type, transmission distance, equipment requirements, and desired signal quality, measured by insertion loss and return loss.
