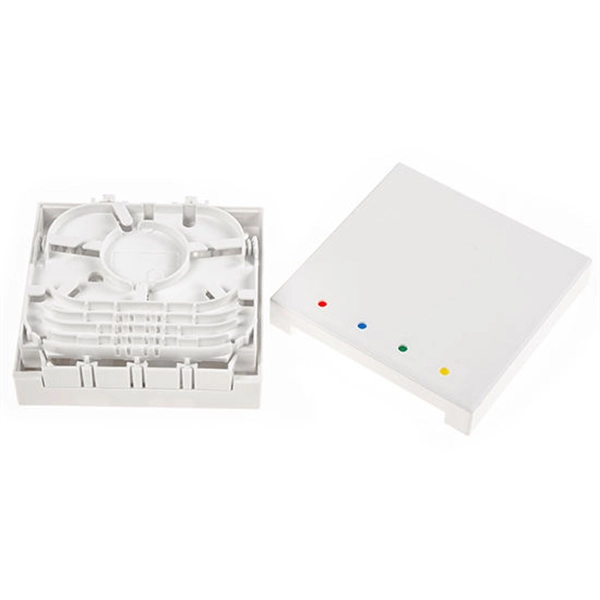

How to connect a network cable to a fiber optic cable and then to a switch

To connect a network cable to a fiber optic switch, use compatible SFP/SFP+ modules with duplex fiber cables, ensuring proper TX/RX alignment and secure port configuration.

Key Components

Fiber Optic Cables: Choose single-mode for long distances or multi-mode for shorter distances, typically terminated with LC connectors for SFP modules. SFP/SFP+ Modules: Transceivers that plug into the switch's fiber ports.

SF

P supports up to 1 Gbps, SFP+ supports up to 10 Gbps, and QSFP modules support higher bandwidths. Patch Panels (Optional): Organize and manage fiber connections without disrupting the network. Media Converters (Optional): Required if the switch lacks SFP ports, converting electrical signals to optical signals.

Step-by-

Step Connection

Verify Compatibility: Ensure the SFP/SFP+ module matches the switch port type and fiber cable type (single-mode or multi-mode),. Insert the Module: Hot-swap the SFP/SFP+ module into the switch port, making sure it is securely seated. Prepare the Fiber Cable: Use duplex fiber cables with LC connectors.

Clean connectors to remove dust or contaminants. Connect TX/RX Properly: For duplex connections, connect the transmit (TX) of one switch to the receive (RX) of the other, and vice versa. Optional Patch Panel: If using a patch panel, connect the other end of the fiber cable to the panel, which then links to the main network.

Power On and Configure: Ensure both switches are powered on. Access the switch via console, Telnet, or SSH, enable the port (e.g., no shutdown), configure speed/duplex if needed, and assign the correct VLAN. Verify Connection: Check link lights and test connectivity to confirm the fiber link is operational.

Safety and Best Practices

Avoid Direct Eye Exposure: Never look directly into fiber connectors or cables, as invisible laser radiation may be emitted.

ES

D Precautions: Wear an ESD wrist strap connected to ground when handling transceivers. Cable Handling: Avoid bending or stressing fiber cables to prevent signal loss or damage. By following these steps and ensuring proper module selection, duplex cabling, and port configuration, you can establish a reliable fiber optic connection between network switches or other devices.
