How to connect a home fiber optic panel for surveillance

You can connect a home fiber optic panel for surveillance by using fiber-enabled PoE switches, digital video optical converters, and proper cabling to link cameras to your NVR or display system. Step 1: Assess Your Surveillance NeedsDetermine the coverage area, number of cameras, and camera types (bullet, dome, PTZ). Decide whether you need high-resolution, night vision, or weatherproof cameras.

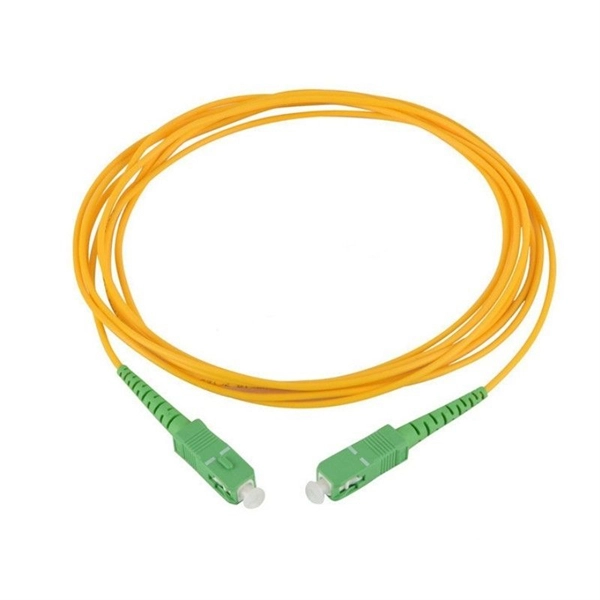

For fiber optic setups, IP cameras are preferred because they can integrate with PoE and fiber networks efficiently. Step 2: Choose the Right EquipmentFiber Optic Cables: Use multimode, double-stranded fiber for short to medium distances, or single-mode for longer runs. Fiber supports high bandwidth (1–10 Gbps) and long distances with minimal signal loss.

Po

E Switches: Fiber-enabled PoE switches allow you to power cameras over Ethernet while using fiber for long-distance uplinks. Digital Video Optical Converters: These convert camera signals to optical signals for transmission over fiber and back to digital for display. Place a transmitter at the camera end and a receiver at the NVR or monitor end.

Connectors and Adapters: Ensure proper fiber connectors (LC, SC, or ST) and avoid splices in critical links. Step 3: Network DesignDirect Fiber Link: Connect the NVR to a fiber-enabled PoE switch using fiber uplink ports. Then connect cameras to the PoE switch using Ethernet cables.

Power over Fiber (PoF): If cameras are far from power sources, consider PoF solutions or run power cables in parallel with fiber.

I

P Addressing: Assign IP addresses to cameras and NVR. Managed switches may require their own LAN IP. Avoid complex VLAN setups for home systems to prevent connectivity issues.

Step 4: InstallationMount Cameras: Place cameras strategically for optimal coverage. Run Fiber Cables: Connect fiber from the PoE switch to the optical converters at each camera location. Connect Ethernet: Link cameras to the transmitter via Ethernet.

Connect the receiver to the NVR or display. Power Up: Ensure transmitters, receivers, and PoE switches are powered. Verify that cameras are receiving power and transmitting video.

Step 5: Testing and OptimizationCheck video quality and latency. Ensure all cameras are visible on the NVR. Adjust camera angles and network settings as needed.

For long-distance setups, fiber reduces EMI and signal loss, ensuring stable, high-quality video. By following these steps, you can create a reliable, long-distance home surveillance network using fiber optics, combining high-speed data transmission with PoE or PoF solutions for powering cameras.
