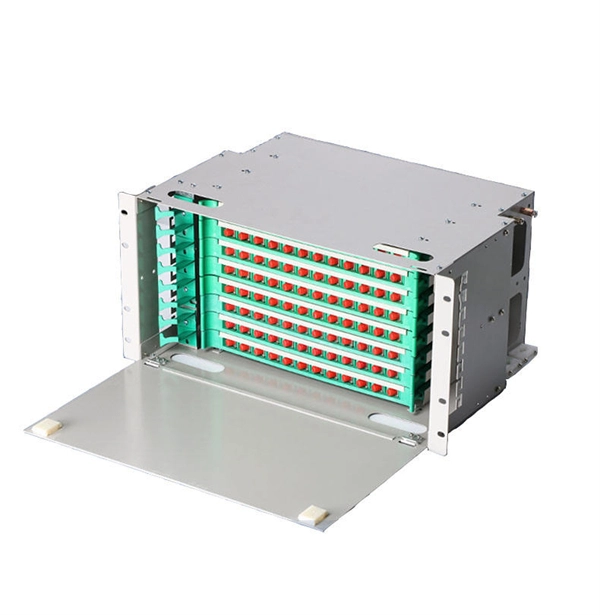

Fiber Optic Connection

Single-mode fusion splicing involves precisely aligning and welding two fiber ends using an electric arc to achieve a permanent, low-loss optical connection.

Overview of Fusion Splicing

Fusion splicing is the most widely used method for joining single-mode fibers because it provides the lowest insertion loss (typically 0. 01–0. 10 dB) and the strongest, most reliable joint compared to mechanical splicing or connectors.

The process permanently fuses the fiber ends, creating a seamless optical path suitable for long-distance, high-bandwidth applications.

Key Steps in Single-

Mode Fusion Splicing

Fiber PreparationStrip the fiber coating to expose the bare glass, typically 2–3 meters of buffer tube for cable preparation. Clean the fiber thoroughly using lint-free wipes and 99%+ isopropyl alcohol to remove dust, oil, or gel residues. Use a fiber cleaning pen or optical-grade cleaning fluid for stubborn contaminants.

Inspect the fiber ends under a microscope or splicer camera to ensure cleanliness before cleaving.

Fiber Cleaving

Use a precision fiber cleaver to create a flat, perpendicular end face. The quality of the cleave directly affects splice loss. Avoid back-and-forth motion during cleaning to prevent redepositing contaminants on the cleaved end.

Fiber Alignment

Place the fibers into the fusion splicer, which uses movable stages to align the fiber ends. Optical Core Alignment (Profile Alignment): The splicer illuminates the fiber cores from two directions, and software automatically aligns them based on core images.

LI

D Core Alignment (Local Injection and Detection): Light is coupled into one fiber and measured on the other to optimize transmission through precise alignment. Proper alignment is critical for single-mode fibers due to their small mode-field diameter, which is less tolerant of misalignment.

Fusion Splicing

The splicer generates an electric arc to weld the fiber ends together, forming a continuous optical path. Typical parameters for single-mode fibers at 1310 nm include pre-fusion time of 0. 3–0.

4 s, fusion time of 3–5 s, and fusion current around 13 mA. The splicer may automatically estimate splice loss after fusion.

Protection

Apply a heat-shrink sleeve over the splice to protect it from moisture, mechanical stress, and environmental hazards. Ensure the sleeve is properly centered and shrunk according to the splicer's instructions.

Quality Control and Troubleshooting

Inspect the splice visually for defects such as black spots, bubbles, or misalignment. Rework a splice only if necessary, and avoid more than two re-fusions to prevent fiber damage. Maintain a clean workspace and use anti-static precautions to protect both the fiber and splicer electronics.

Regularly check splicer electrodes, power stability, and tool condition to ensure consistent splice quality.

Advantages of Single-

Mode Fusion Splicing

Extremely low insertion loss (0. 01–0. 10 dB) and minimal back reflection.

Permanent, robust connection suitable for long-distance and high-bandwidth networks. Cost-effective for large-scale installations despite higher initial equipment cost, due to low per-splice cost. By following these methods, technicians can achieve high-performance, reliable single-mode fiber splices suitable for telecommunications, data centers, and other critical optical networks.
