Laying Optical Cables for Long-Distance Pipelines

Laying optical cables in long-distance pipelines requires careful planning, adherence to standards, proper cable selection, mechanical protection, and controlled installation techniques to ensure reliability and longevity.

Cable Selection and Standards

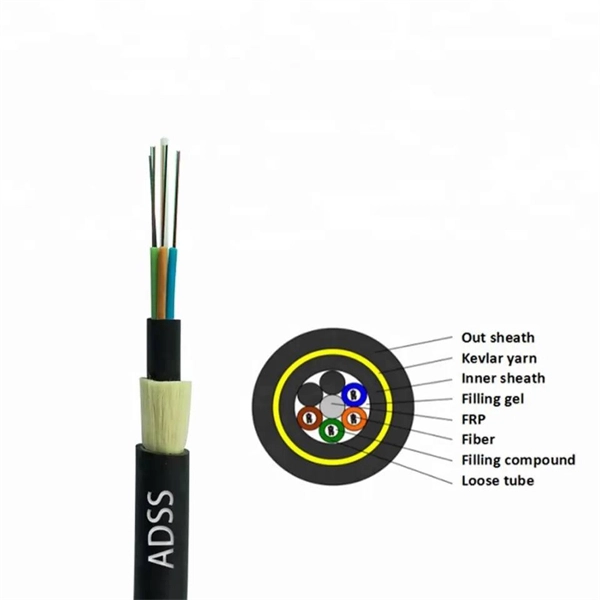

For long-distance pipeline installations, outdoor-rated optical cables are recommended, often armored for mechanical protection. Standards such as ANSI/ICEA S-87-640 for outdoor cables and ANSI/ICEA S-104-696 for indoor-outdoor cables define performance requirements including tensile strength, impact resistance, and environmental durability. Steel tape armored cables are commonly used to protect against underground hazards like rodents, while dual-jacket all-dielectric cables offer additional tensile strength and core protection.

ITU-T Recommendations, such as L. 163, provide guidance for cable selection, route planning, and installation in remote or infrastructure-limited areas.

Laying Methods

The most common method for pipeline installations is underground pipeline laying, which involves threading the optical cable through pre-installed ducts or sub-tubes within the pipeline. Key requirements include: Ensuring the cable passes through the correct sub-tube consistently, with unused sub-tube ends sealed with plugs. Using whole-length cable reels to minimize splicing and reduce optical loss.

Controlling traction force during installation to prevent fiber damage, often by laying from the middle outward with personnel assisting at manholes. Cleaning and preparing pipe holes before cable insertion and protecting interfaces with PVC tape to prevent sand or debris infiltration. Securing the cable in manholes using supporting plates or expansion bolts to maintain stability.

Mechanical and Environmental Protection

Cables must withstand compression, impact, and environmental stress. Steel tape armor or dual-jacket designs provide protection against mechanical damage, while polymer jackets shield fibers from moisture, temperature fluctuations, and chemical exposure. Proper sheath selection balances protection with sensitivity for sensing applications, such as vibration or strain monitoring.

Installation Considerations

Route planning should account for bends, temperature variations, and potential obstacles, following ITU-T L. 163 guidance. Pilot tests and training for installation personnel are recommended to mitigate risks in long-distance deployments.

Maintenance access should be considered, including manholes or access points for inspection and repair. Disaster recovery and safety procedures must be integrated into the installation plan, especially for critical infrastructure pipelines.

Summary

Successful long-distance pipeline optical cable installation requires: Selecting cables compliant with ANSI/ICEA and ITU-T standards. Using armored or dual-jacket cables for mechanical and environmental protection. Following controlled laying procedures to minimize fiber stress and optical loss.

Planning routes, access points, and maintenance strategies. Training personnel and performing pilot tests to ensure reliability and safety. By adhering to these requirements, optical cables can provide robust, long-term performance for communication, monitoring, or sensing applications in pipeline environments.
