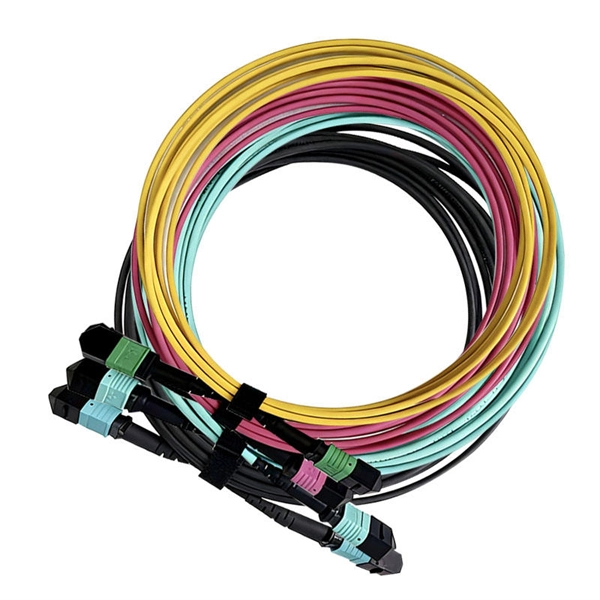

MTP/MTO connectors are high-density fiber optic connectors designed for reliable, high-speed interconnects in data centers and optical networks, supporting up to 24 fibers in a compact footprint. OverviewMTP stands for Multi-fiber Termination Push-on, a high-performance variant of the MPO (Multi-fiber Push-On) connector developed by US Conec.

MT

O is often used interchangeably with MTP in certain Molex assemblies, referring to similar high-density ribbon fiber connector solutions. Both connectors are designed for high-density cabling systems, enabling multiple fibers (typically 4 to 24) to be terminated in a single connector, which saves space and simplifies network management.

Key Features

High Fiber Count: MTP/MTO connectors can support 12, 16, 24, or more fibers in a single ferrule, making them ideal for 40G, 100G, and 400G network applications. Precision Alignment: Alignment between mating ferrules is achieved using two precision guide pins in male connectors, which fit into female connectors to ensure accurate fiber core alignment and minimize insertion loss.

Push-

Pull Mechanism: Both connectors use a push-pull housing for quick and reliable mating and demating, reducing installation time and risk of damage. Compatibility: MTP connectors are compatible with standard MPO connectors, allowing flexible integration into existing network infrastructures. Low Loss Options: Singlemode low-loss versions use precise MT 8-fiber ferrules and guide pins, achieving insertion loss comparable to single-fiber ceramic ferrules.

ApplicationsMTP/MTO connectors are widely used in: Data centers for high-speed parallel optical transceiversBroadcast communications and industrial control systemsBackplane interconnections using adapters like Molex HBMT and BMTPFanout assemblies to LC, MU, FC, SC, or ST connectors for integration with existing fiber networks Technical ConsiderationsGender: Male connectors have alignment pins, while female connectors have holes to receive the pins, ensuring proper mating. Orientation: Key Up/Key Down or Key Up/Key Up configurations maintain correct signal polarity and fiber mapping.

End-

Face Types: UPC (Ultra Physical Contact) or APC (Angled Physical Contact) polishing affects reflection and insertion loss, with UPC commonly used for multimode systems. Standards Compliance: MTP/MTO connectors meet IEC 61754-7 and TIA/EIA 604-5 standards, ensuring interoperability and performance reliability. SummaryMTP/MTO connectors provide a high-density, low-loss, and reliable solution for modern optical networks.

Their precision alignment, push-pull mechanism, and compatibility with MPO standards make them essential for high-speed data transmission, particularly in environments where space and performance are critical. They are versatile, supporting both ribbon fiber assemblies and fanouts to single-fiber connectors, making them a cornerstone of contemporary fiber optic infrastructure.
