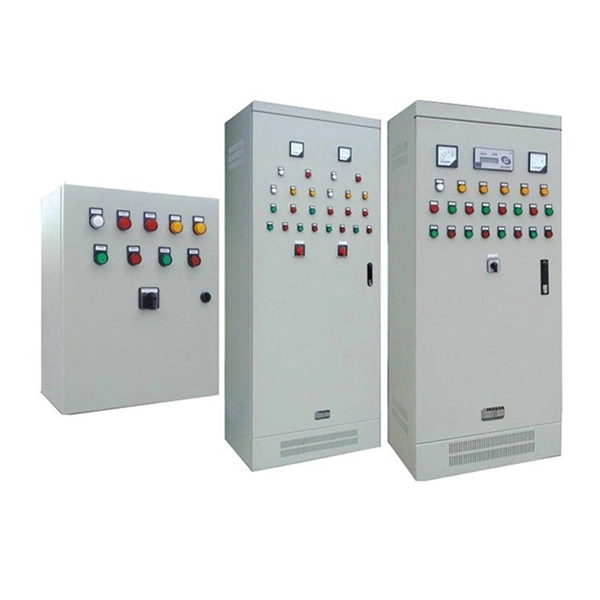

How to wire the circuit breaker in the cabinet

Wiring a circuit breaker involves connecting the line, neutral, and ground wires to the appropriate terminals in the electrical panel while ensuring the main power is off and safety precautions are followed.

Safety First

Before starting, turn off the main power supply at the service disconnect or main breaker to prevent electric shock ( ). Use insulated tools, wear protective gloves, and verify the circuit is de-energized with a voltage tester ( ). Never work on a live panel.

Identify Wires

You will typically work with three types of wires ( ): Line (hot) wire: Carries current from the meter to the breaker (usually black or red). Neutral wire: Completes the circuit (usually white). Ground wire: Provides safety by directing leakage current to the ground (usually green or bare copper).

Step-by-

Step Wiring

Remove the panel cover using a screwdriver and locate an empty slot for the new breaker ( ). Install the breaker on the DIN rail or snap it into the panel slot until it clicks securely ( ). Connect the ground wire to the ground bar in the panel ( ).

Connect the neutral wire to the neutral bar. For the main breaker, the neutral may also connect through the ground bar ( ). Connect the line wire to the breaker terminal.

For a single-pole breaker, connect one hot wire; for a double-pole breaker, connect both hot wires ( ). Tighten all terminal screws securely to prevent loose connections ( ). Check the breaker alignment with the panel cover and ensure no wires are pinched when replacing the cover ( ).

Final Checks

Switch the breaker to the ON position and verify that connected appliances or circuits are functioning properly ( ). Use a voltage tester to confirm proper current flow and ensure there are no unusual sounds or sparks ( ). Label the breaker for future reference to simplify maintenance or troubleshooting ( ).

Additional Tips

Select the appropriate breaker size based on the amperage requirements of the connected circuit ( ). Ensure the panel and breakers meet local electrical codes and safety standards. If unsure, consult a licensed electrician, especially for main breaker or high-amperage installations ( ).

By following these steps carefully, you can safely wire a circuit breaker in a cabinet while minimizing the risk of electrical hazards.
