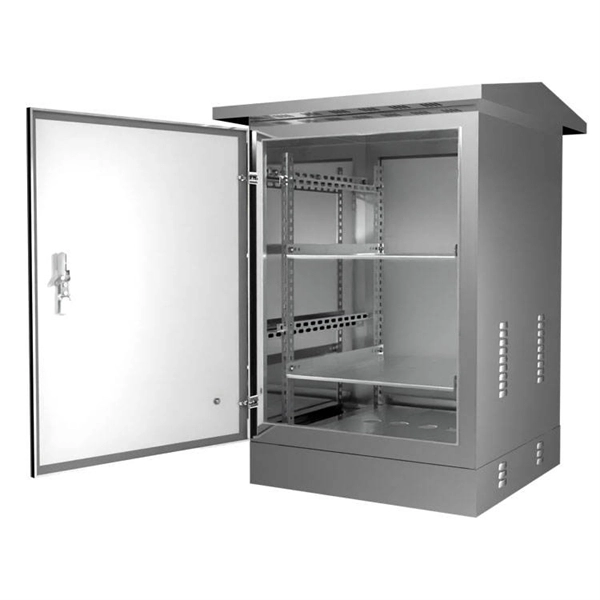

Electrical Distribution Box Frame Fabrication

An electrical distribution box frame is constructed using durable materials like steel or thermoplastics, assembled to ensure stability, proper alignment, and safe housing for electrical components.

Materials and Frame Design

The frame of a distribution box is typically made from powder-coated or epoxy-coated stainless steel for industrial applications, or engineering thermoplastics such as polycarbonate (PC) or acrylonitrile styrene acrylate (ASA) for residential and light commercial use. The choice of material depends on environmental conditions, load capacity, and durability requirements. Frames must be rigid enough to support the weight of circuit breakers, bus bars, and other components while resisting deformation.

Assembly and Alignment

Frames are usually welded or bolted together, ensuring perpendicularity and level alignment of the cabinet surfaces. When installing multiple cabinets in a row, sizing blocks may be used to adjust alignment, but no more than three blocks should be used per panel to maintain structural integrity. Proper leveling ensures that doors close correctly and components fit securely.

Mounting MethodsWall-mounted boxes: Fixed using expansion bolts or embedded dovetail bolts in hollow brick or block walls. Floor-mounted or panel-type boxes: Placed on a foundation section steel frame, with each cabinet adjusted for perpendicularity and levelness before welding or bolting. Flush-mounted panels: Panels should be flush with the wall surface for aesthetic and safety reasons.

Safety and Compliance

The frame must allow for adequate ventilation and accessibility for maintenance. It should comply with IP/NEMA ratings to protect against dust, moisture, and corrosion. Proper grounding and secure attachment points are essential to prevent electrical hazards.

The frame should also accommodate mechanical interlocks for switches and breakers, ensuring safe operation. Integration with ComponentsThe frame must support the installation of bus bars, circuit breakers, fuses, RCDs, and RCBOs. Holes and slots are pre-designed for cable entry, mounting of protective devices, and optional smart modules for energy monitoring.

The design should allow for neat cable management and easy access for inspection or maintenance.

Summary

Constructing a distribution box frame involves selecting appropriate materials, ensuring structural stability, precise alignment and leveling, and providing safe mounting and integration for electrical components. Following these guidelines ensures a durable, compliant, and safe distribution box suitable for residential, commercial, or industrial applications.
