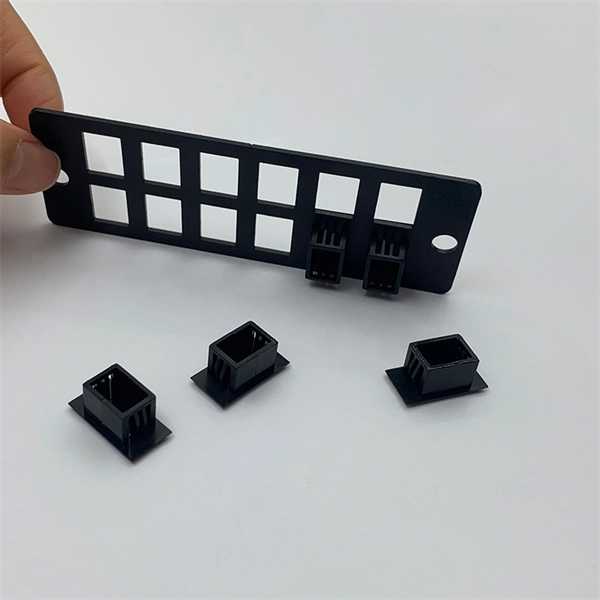

Steps to connect the network patch panel

Connecting a network patch panel involves mounting the panel, terminating cables using a punch-down tool, testing connections, and linking it to network devices for organized and efficient network management. Step 1: Mount the Patch PanelSecure the patch panel in a server rack or on a wall, depending on your setup. Ensure it is positioned for easy access to both the front ports and rear cable terminations, and leave enough space for cable management and future expansion.

Step 2: Prepare the CablesRun your Ethernet or network cables from wall jacks, outlets, or other termination points to the patch panel location. Leave sufficient slack to allow easy handling and adjustments. Strip about 1–2 inches of the outer jacket from each cable carefully, avoiding damage to the internal wires.

Step 3: Arrange the WiresSeparate and organize the individual colored wires according to a wiring standard, either T568A or T568B. Consistency is crucial—use the same standard for all cables in your network. Step 4: Punch Down the WiresUsing a punch-down tool, insert each wire into the corresponding slot on the patch panel.

The tool will terminate the wire and trim any excess simultaneously. Repeat this process for all cables. Step 5: Test the ConnectionsUse a cable tester to verify that each connection is properly wired and functioning.

This ensures that all ports are correctly terminated and ready for network use. Step 6: Label the PortsClearly label each port on the patch panel to indicate which device or location it connects to. This simplifies troubleshooting and future network modifications.

Step 7: Connect to Network DevicesUse patch cables to connect the front ports of the patch panel to network switches, routers, or other devices. Ensure that the patch cables match the category rating of your installed cables (e.g., Cat5e, Cat6) to maintain network performance. Step 8: Organize the CablesUse cable ties, Velcro straps, or cable management panels to neatly route and secure cables behind the patch panel and within the rack.

Proper organization prevents tangling, reduces strain on connections, and maintains a professional appearance. By following these steps, your patch panel will provide a centralized, organized, and scalable network infrastructure, making it easier to manage, troubleshoot, and expand your network in the future.
