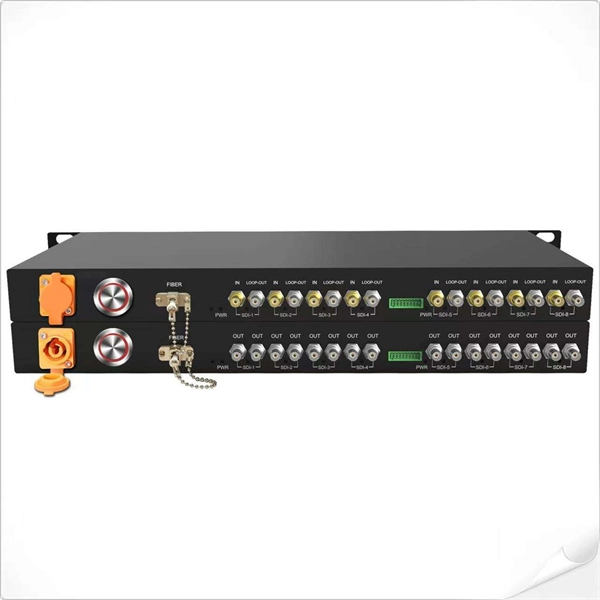

The fiber optic panel is blocked

A blocked fiber optic panel is usually caused by connector contamination, misalignment, or physical damage, and can be resolved by cleaning, inspecting, and testing the connections. Step 1: Inspect Physical ConnectionsStart by visually checking the fiber optic panel for loose, bent, or damaged cables. Look for sharp bends, kinks, or connectors that are not fully seated, as these can cause signal loss or blockage.

Ensure that all patch cords are properly connected and that the latching mechanisms on connectors are intact. Step 2: Clean ConnectorsContamination is the leading cause of fiber failures. Dust, fingerprints, or oil on connector end faces can block light transmission.

Use lint-free wipes and isopropyl alcohol to clean each connector carefully. For high-precision cleaning, consider using fiber optic cleaning tools such as cassette cleaners or one-click cleaners. Step 3: Test Signal StrengthAfter cleaning, measure the signal using a power meter or Optical Time-Domain Reflectometer (OTDR).

Values outside the normal range (typically -15 dBm to -30 dBm) indicate persistent issues.

OTD

R is particularly useful for locating hidden breaks, microbends, or excessive attenuation along the fiber run. Step 4: Verify Device FunctionalityIf the panel appears physically intact, check the connected devices: Swap suspect transceivers with known-good units. Restart switches, routers, or media converters to clear temporary glitches.

Observe indicator LEDs; a “LOS” (Loss of Signal) light signals connectivity problems. Step 5: Address Configuration or Environmental IssuesEnsure that firmware is up to date and that there are no IP conflicts or routing errors. Environmental factors like moisture or extreme temperatures can also affect performance, so verify that the panel is in a controlled environment.

Preventive Measures

Use armored or industrial-grade cables in high-risk areas. Maintain proper bend radius and clearly mark cable pathways. Regularly inspect and clean connectors to prevent dust accumulation.

Limit the number of connections in a single channel to reduce insertion loss. By following these steps—inspection, cleaning, testing, and verifying device functionality—you can effectively resolve a blocked fiber optic panel and restore optimal network performance.
