PON and fiber optic cable systems

Fiber and communications infrastructure knowledge brief Published 04 Apr 2021

Prepared for preliminary research by the ENSAA knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

A Passive Optical Network (PON) is a fiber-optic system that delivers high-speed data from a single source to multiple endpoints using unpowered splitters, enabling cost-effective, scalable broadband connectivity.

Overview of PON

A Passive Optical Network (PON) is a fiber-based access network that connects a central office or service provider to multiple end users without requiring powered devices in the distribution network. Unlike point-to-point fiber systems, which require a dedicated fiber for each user, PON uses optical splitters to share a single fiber among many users, reducing infrastructure costs and complexity.

PO

Ns are widely used for fiber-to-the-home (FTTH), enterprise LANs, and smart-building deployments.

Key Components

Optical Line Terminal (OLT): Located at the service provider's central office, the OLT manages data transmission to and from multiple users. Passive Optical Splitters: These unpowered devices divide the optical signal from the OLT into multiple outputs, allowing one fiber to serve many endpoints. Splitters can be configured in various ratios, such as 1: 8, 1: 16, or 1: 32.

Optical Network Units (ONUs) / Optical Network Terminals (ONTs): Installed near the end user, these devices convert optical signals into electrical signals for devices like computers, phones, and TVs. Fiber Cabling: Singlemode fiber (e.g., ITU-T G. 652.

D) is typically used for PONs, supporting long distances and high bandwidth. Fiber can be preterminated or installed with modular systems for flexibility. Fiber Optic Cabling ConsiderationsPON systems require careful cabling design to maintain signal integrity and performance: Structured Cabling: Hierarchical structured cabling ensures flexible, standards-based connections from OLTs to ONTs, reducing operational complexity and supporting future upgrades.

Splitter Panels: Advanced PLC (Planar Lightwave Circuit) splitter panels provide low insertion loss, high uniformity, and low polarization-dependent loss, supporting multiple fiber connections in a compact 19-inch rack unit.

Bend-

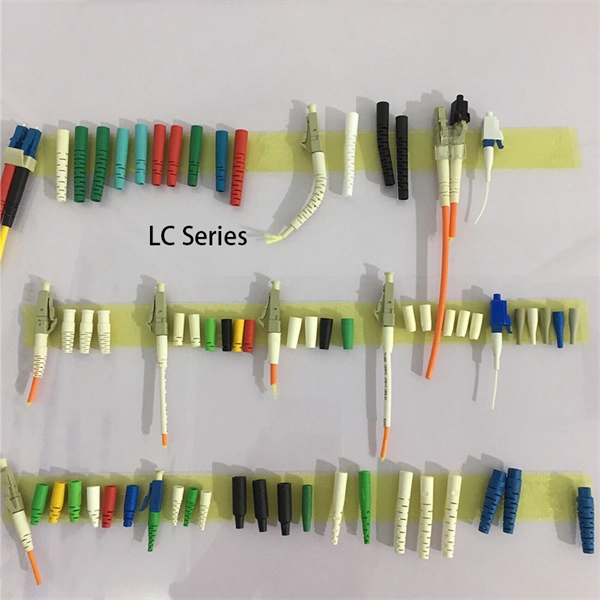

Insensitive Fiber: To prevent signal loss from tight bends, bend-insensitive singlemode fibers are recommended, especially in enterprise or high-density deployments. Connectivity Options: SC and LC connectors, preterminated MTP/MPO assemblies, and modular faceplates allow flexible deployment and easy maintenance.

Advantages of PON

Cost Efficiency: Reduces the number of fibers and active equipment required compared to point-to-point networks. High Bandwidth: Supports multi-gigabit speeds suitable for voice, video, and data services. Scalability: Easily accommodates additional users by adding splitters or upgrading OLTs.

Low Maintenance: Passive components require no power, reducing operational costs and improving reliability.

Applications

Residential Broadband: FTTH deployments for high-speed internet, IPTV, and VoIP services. Enterprise Networks: Passive Optical LANs (POLs) for offices, campuses, and data centers, offering simplified cabling and energy savings. Smart Buildings: Integration with IoT devices, security systems, and building automation.

In summary, PON combined with fiber optic cabling provides a highly efficient, scalable, and cost-effective solution for delivering high-speed connectivity to multiple users, making it a cornerstone of modern broadband and enterprise network infrastructure.
