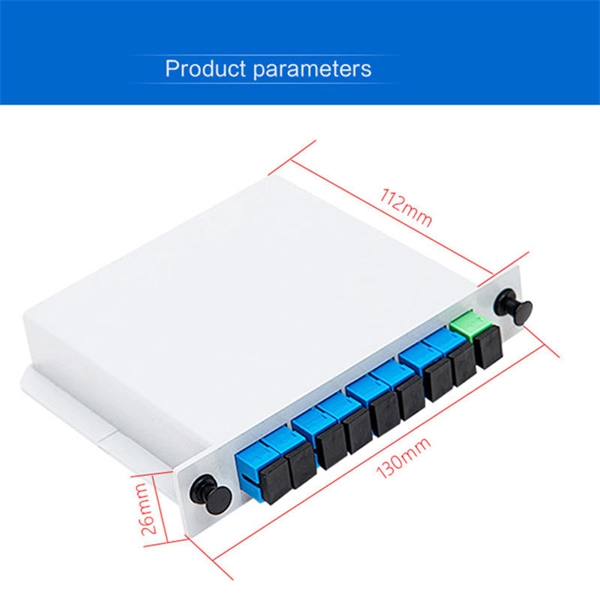

Optical distribution box connected to fiber optic cable

The fiber optic cable is connected to the optical distribution box at the splice trays or optical splitter ports, where it is terminated, protected, and distributed to other network fibers.

Connection Point Overview

In a fiber optic distribution box, the incoming fiber optic cable (backbone or feeder cable) is routed into the box and terminated at splice trays or optical splitter modules. These components serve as the main connection hub inside the box, allowing the fiber to be spliced, organized, and distributed to multiple outgoing fibers that lead to subscriber endpoints or other network nodes (FTTH, FTTB, or FTTC deployments).

Internal Structure

Splice Trays: The incoming fiber is stripped, cleaned, and spliced to pigtails or patch cords within the splice trays. This protects the fiber from bending, tensile stress, and environmental damage while maintaining signal integrity. Optical Splitters: In some distribution boxes, the incoming fiber is connected to a PLC splitter or other optical splitter, which divides the signal into multiple outputs for distribution to subscribers.

Patch Panels/

Connectors: Some boxes include connectorized ports where the fiber can be plugged in directly using patch cords, facilitating easier maintenance and reconfiguration.

Installation Context

Indoor Boxes: Wall-mounted or rack-mounted boxes inside buildings typically handle a smaller number of fibers and are used for distributing fiber to apartments or offices. Outdoor Boxes: Street cabinets or aerial boxes protect the fiber from environmental factors and serve as intermediate distribution points in the network.

Summary

The fiber optic cable enters the optical distribution box and is connected at the splice trays or splitter ports, where it is terminated, protected, and routed to distribution fibers. This setup ensures organized, secure, and efficient management of fiber connections, enabling reliable network operation and easy maintenance.
