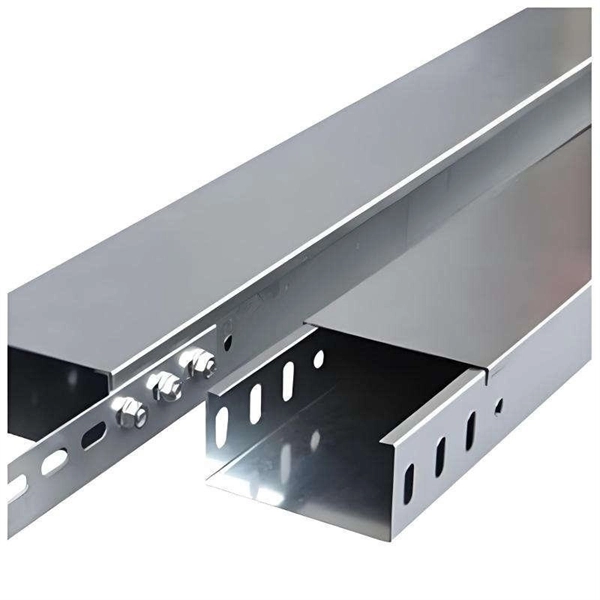

The cable tray is seven or eight meters high

Installing a cable tray at seven or eight meters requires careful consideration of structural support, fill ratio, and safety standards to ensure stability and maintainability.

Height Considerations

Cable trays mounted at heights of 7–8 meters are considered high installations and require robust support systems. At this elevation, trays must withstand the weight of cables, environmental factors, and potential external loads without excessive deflection or risk of failure, as outlined in IEC 61537. Proper bracket spacing, typically every 2–3 meters depending on tray type and load, is essential to maintain mechanical integrity.

Tray Sizing and Fill Ratio

The height of the tray sidewalls (depth) is critical for holding cables securely and allowing adequate ventilation. Standard tray depths range from 50 mm to 150 mm, while widths vary from 50 mm to 900 mm, depending on the number and type of cables. For high-mounted trays, maintaining a 40% fill ratio is recommended to prevent overheating and allow future cable additions.

Overfilling can lead to heat buildup, reduced airflow, and potential cable damage.

Mechanical and Safety Standards

High installations must comply with IEC 61537 and relevant NEC/NEMA guidelines. These standards cover: Mechanical strength: Ensuring trays can support cable weight and environmental loads. Fire resistance: Using materials that withstand high temperatures.

Electrical continuity: Maintaining grounding and bonding across tray sections. Ventilation: Proper perforation or spacing to allow heat dissipation.

Installation and Maintenance

At 7–8 meters, accessibility for maintenance becomes a key concern. Considerations include: Using ladders, scaffolding, or lifts for installation and inspection. Ensuring secure anchoring to walls, ceilings, or structural beams.

Planning for future cable additions without requiring tray replacement, facilitated by leaving extra space in the tray.

Summary

Installing a cable tray at seven or eight meters is feasible but requires: Correct tray sizing based on cable type and quantity. Maintaining a safe fill ratio (around 40%).

Adhering to IEC and NE

C standards for mechanical strength, fire resistance, and electrical continuity. Proper support and accessibility planning for installation and future maintenance. Following these guidelines ensures a safe, durable, and maintainable high-mounted cable tray system.
