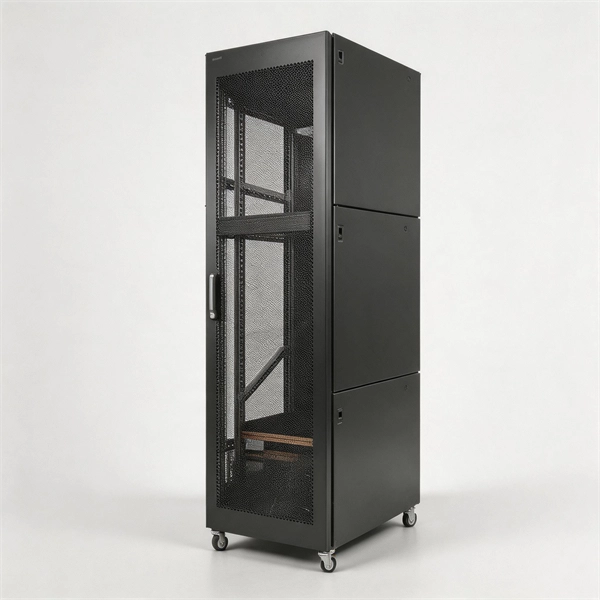

How to install the small busbar in the electrical cabinet

Installing a small busbar requires careful planning, proper mounting on insulators, secure connections, and adherence to safety standards. Step 1: Preparation and SafetyTurn off all power to the electrical cabinet and verify with a multimeter to ensure no live voltage is present ( ). Gather insulated tools such as nut drivers, torque wrenches, and cleaning kits for metal surfaces ( ).

Inspect the busbar and insulators for any damage, cracks, or thermal stress before installation ( ). Step 2: Layout PlanningDetermine the busbar size and current rating based on your load requirements ( ). Plan the placement within the cabinet, ensuring adequate clearance from live components and space for future connections ( ).

Maintain proper phase spacing to prevent arcing and allow for heat dissipation ( ). Step 3: Mounting Busbar InsulatorsUse busbar insulators to support and electrically isolate the busbar from the cabinet ( ). For copper busbars, the maximum span between insulators is typically 300–400 mm, depending on thickness and current ( ).

Secure insulators with appropriate brackets and fasteners, ensuring they are firmly fixed to prevent movement ( ). Step 4: Installing the BusbarPlace the busbar on the insulators, ensuring it is flat and properly aligned. Avoid forcing it into position to prevent stress ( ).

If the busbar is long, use additional clamps or insulators in the middle to prevent sagging ( ). For overlapping busbars or multiple layers, stagger phases and maintain spacing to improve heat dissipation ( ). Step 5: Electrical ConnectionsStrip wires and attach them to the busbar using bolts or clamps, following manufacturer torque specifications ( ).

Apply conductive grease on aluminum busbars to prevent oxidation and improve conductivity ( ). Use color-coded wires or labels to differentiate neutral, ground, and phase connections ( ). Step 6: Insulation and ProtectionInstall insulation covers over the busbar to prevent accidental contact ( ).

Additional protection such as heat shrink tubing or electrical tape can be applied at connection points ( ). Step 7: Testing and VerificationCheck all connections for tightness and continuity using a multimeter ( ). Verify proper voltage distribution and ensure compliance with electrical standards ( ).

Perform a visual inspection for alignment, spacing, and secure mounting. Step 8: MaintenancePeriodically check bolts and connections for tightness. Use a thermal camera to detect hotspots or abnormal heating ( ).

Replace any insulators showing signs of damage or wear ( ). By following these steps, you can ensure a safe, reliable, and efficient installation of a small busbar in an electrical cabinet, meeting both operational and safety requirements.
