Fiber optic cable splicing method for fixing

Fiber optic cable splicing is the process of permanently joining two optical fibers to ensure seamless, low-loss data transmission, primarily using fusion or mechanical splicing methods.

Overview of Fiber Optic Splicing

Fiber optic splicing is essential for extending cable runs, repairing damaged fibers, and building robust network infrastructure. Unlike connectors, which are designed for temporary or flexible connections, splicing creates a permanent, stable joint with minimal signal loss and back reflection, making it ideal for long-haul networks, enterprise backbones, and emergency repairs. Proper splicing ensures signal integrity, reduces network downtime, and supports high-performance data transmission.

Main Splicing Methods1.

Fusion Splicing

Fusion splicing is the most widely used method, especially for long-distance and high-performance applications. It involves: Aligning fiber ends precisely using a fusion splicer. Melting the fiber tips with an electric arc to fuse them into a single continuous fiber.

Resulting in extremely low signal loss (typically 0. 1 dB or less) and minimal back reflection. Fusion splicing is preferred for single-mode fibers and long-haul networks due to its reliability and low attenuation.

Modern fusion splicers use core or cladding alignment and may include automated loss estimation for optimal performance. 2.

Mechanical Splicing

Mechanical splicing is a faster, practical alternative for field repairs or temporary connections. It involves: Aligning fibers in a mechanical fixture or sleeve. Using an index-matching gel to reduce light loss at the joint.

Providing a semi-permanent connection without melting the fibers. Mechanical splicing is suitable for quick repairs, multi-fiber ribbons, or situations where fusion splicing equipment is unavailable. However, it generally results in slightly higher signal loss and back reflection compared to fusion splicing.

Fiber Preparation and Tools

Effective splicing requires careful preparation: Cleaning fibers to remove dust and contaminants. Cleaving fibers with precision to create flat, perpendicular ends. Using specialized tools such as fusion splicers, mechanical splice units, and protective sleeves.

Proper handling and adherence to best practices are critical to achieving low-loss, high-quality splices.

Protection and Fixing of Spliced Fibers

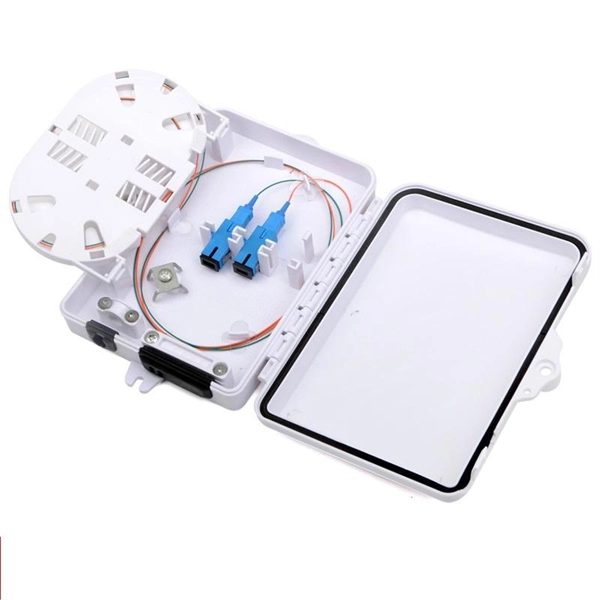

After splicing, fibers must be protected to prevent physical damage, moisture ingress, and environmental stress: Single fiber protection sleeves: Typically 40–60 mm long with stainless-steel reinforcement. Ribbon fiber sleeves: Designed for multiple fibers (4, 8, or 12) in high-density applications. Splice closures: Enclosures that provide robust protection against temperature extremes, humidity, and mechanical stress, often rated IP68 for outdoor use.

Selecting the right protection depends on environmental conditions, fiber count, and anticipated network expansion.

Best Practices

Maintain clean and dust-free work areas. Follow systematic fusion parameters for consistent splicing. Test splices for insertion loss and back reflection.

Use appropriate protective sleeves and closures to ensure long-term reliability.

Applications

Fiber optic splicing is used in: Long-haul telecommunications and ISP backbones. Campus or enterprise network extensions. Data centers and telecom towers.

Emergency repairs of severed or damaged cables. By understanding and applying proper splicing and fixing methods, technicians can ensure high-performance, reliable fiber networks capable of supporting modern communication demands.
