Dual-core fiber optic patch cord connection diagram

A dual-core (duplex) fiber optic patch cord diagram shows the transmit (Tx) and receive (Rx) fiber paths, connector orientation, and polarity to ensure proper signal alignment between devices.

Understanding the Basics

A dual-core fiber optic patch cord consists of two fibers: one for transmitting data (Tx) and one for receiving data (Rx) between devices. The diagram typically indicates which fiber connects to the Tx port of one device and the Rx port of the other, ensuring bidirectional communication. Incorrect mapping can result in signal loss even if the fiber and connectors are physically intact and within specifications (Holight Optic).

Connector Orientation and Polarity

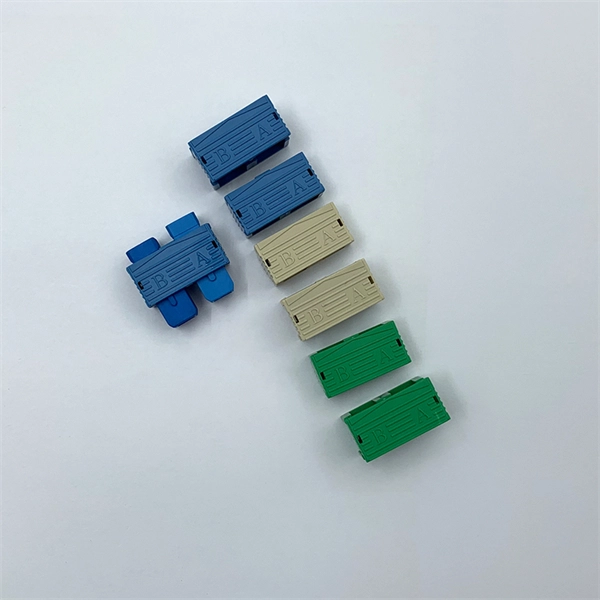

Duplex connectors (LC, SC) are often shown as two fibers side by side in a single assembly. The diagram may indicate the key orientation or the fiber positions (A/B or 1/2) to maintain correct polarity. Polarity types define how fibers are mapped: for example, Type A maintains straight-through fiber alignment, while Type B swaps the fibers to match Tx-Rx ports.

The diagram will usually show arrows or labels indicating the direction of signal flow (Holight Optic). In MPO/MTP parallel systems, the diagram may include fiber numbering and adapter alignment to ensure fiber 1 at the source aligns with the correct receive port at the destination (Holight Optic).

Reading the Diagram

Identify the Tx and Rx ports on both devices. Trace the fibers in the diagram from one connector to the other, noting any swaps or crossovers. Check connector type and orientation: LC, SC, or MPO connectors may have keys or clips that must align with the diagram.

Verify polarity type: Ensure the diagram matches the intended polarity (straight-through or crossover) for your network setup.

Practical Tips

Duplex cords are sometimes called “zip cords” because the two fibers are joined but can be separated if needed (TrueCable). Always confirm the fiber type (single-mode or multimode) and core size to match the devices and network requirements (Network-Switch). Use the diagram to plan patch panel connections and avoid misalignment, which can cause downtime or signal degradation (Corning).

By carefully following the diagram, you ensure that the Tx signal from one device reaches the Rx port of the other, maintaining proper duplex communication and network performance.
